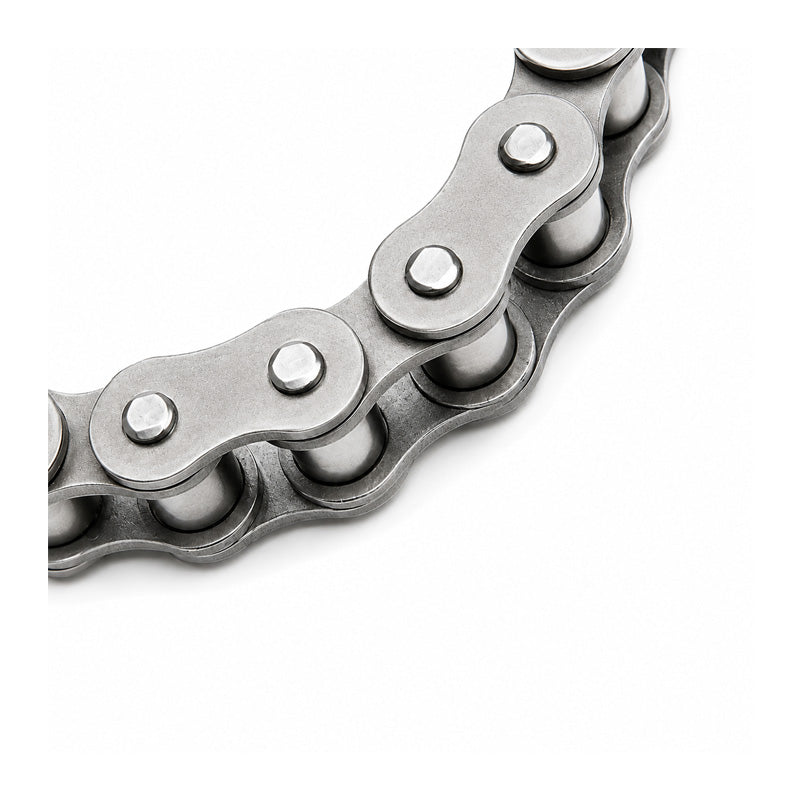

• Branded ANSI/ASA100-1 Simplex Roller Chain 1-1/4 inch Pitch 2.5 Metres
1 1

SKU: 100-1-2.5MTR-MB

Branded ANSI/ASA100-1 Simplex Roller Chain 1-1/4 inch Pitch 2.5 Metres

Branded ANSI/ASA100-1 Simplex Roller Chain 1-1/4 inch Pitch 2.5 Metres
$84.77 ex VAT
$84.77 ex VAT
Sale Sold out

In stock

Price Break
2+ $56.78
5+ $53.59
10+ $52.95
29+ $52.32
49+ $51.68
75+ $51.04
100+ $47.85
200+ $47.21
250+ $46.57
500+ $45.94
1000+ $44.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
31.75mm = 1.25 (1-1/4) inch
Technical
Pitch (P) 31.75mm = 1.25 (1-1/4) inch
Roller Diameter (D1 max) 19.05mm
Width between inner plates (B1 min) 18.9mm
Pin dia meter (D2 max) 9.53mm
Pin length (L max) 40.4mm
Pin length (Lc max) 44.7mm
Inner plate depth (H2 max) 30
mmPlate thickness (T max) 4
mmUltimate tensile strength (Q min) kN/LB 88.50/20114
Average tensile strength (Q0) kN 109.2
Weight per meter (q) kg/m 3.91
