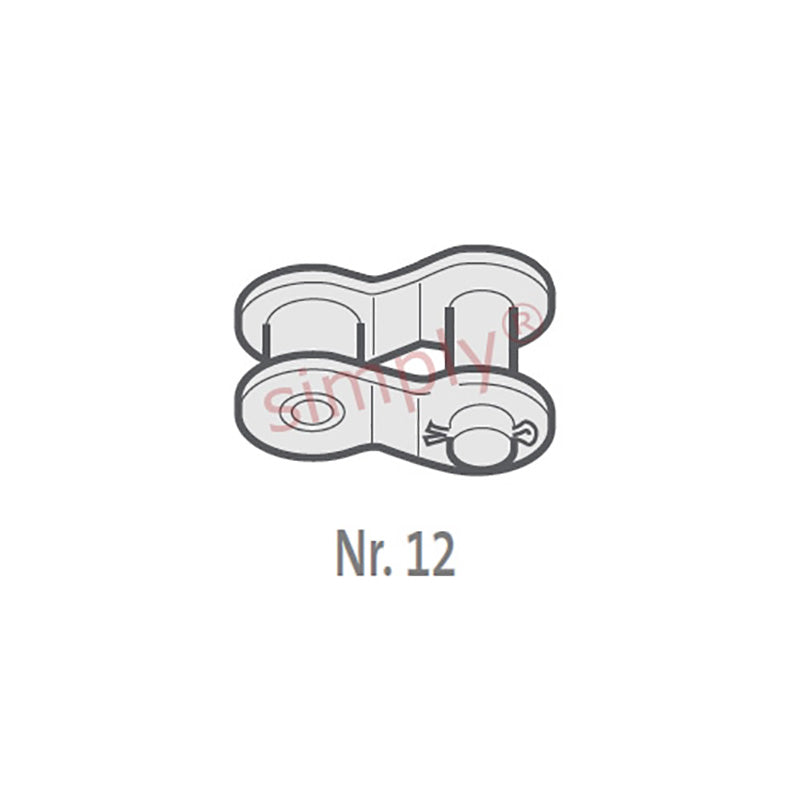

• Renold Synergy 100-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
  • Renold
1 2

SKU: 100-1-SYN-NO12-RENOLD

Renold Synergy 100-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch

Renold Synergy 100-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
$131.95 ex VAT
$131.95 ex VAT
Sale Sold out

In stock

Price Break
2+ $88.39
5+ $83.42
10+ $82.43
29+ $81.44
49+ $80.44
75+ $79.45
100+ $74.48
200+ $73.49
250+ $72.50
500+ $71.51
1000+ $69.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
31.75mm = 1.25 (1-1/4) inch
Technical
Pitch (A) 1.25 inch
Pitch (A) 31.75mm
Inside Width min (B) 18.9mm
Roller Diameter max (C) 19.05mm
Plate Height max (D) 30.17mm
Plate Width Inner max (E) 4.06mm
Plate Width Outer max (F) 4.06mm
Pin Diameter max (G) 9.54mm
Pin Length max (H1) 39.7mm
Connecting Link Extension max (J) 4.2mm
ISO606 Tensile Strength min 87000 N
Weight 0.04kg/m
