SKU: 100-2-BB-NO11-RENOLD

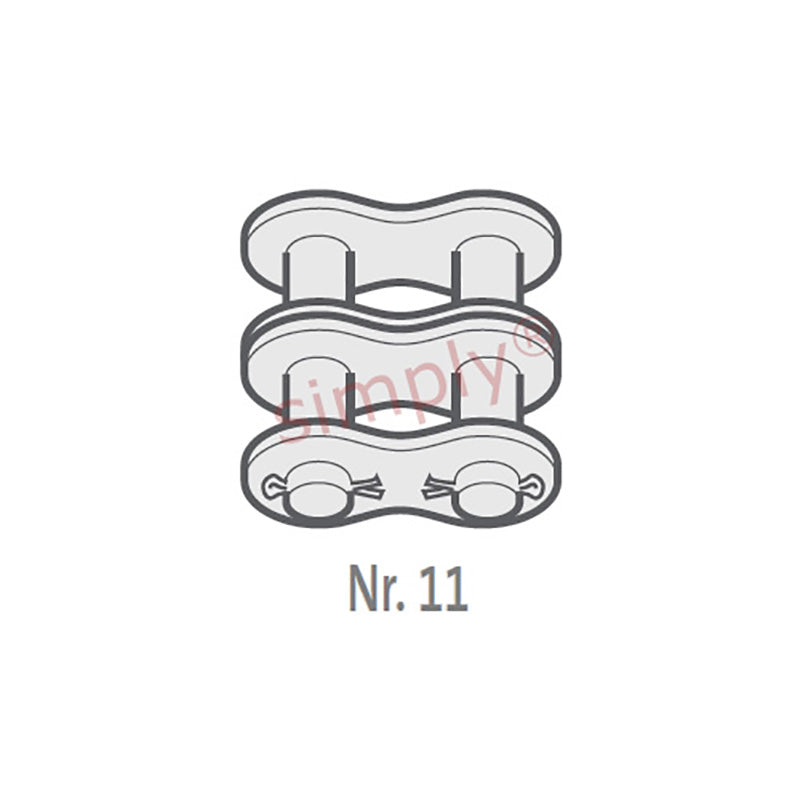

Renold Blue Box 100-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Renold Blue Box 100-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Regular price
$59.74
ex VAT
Regular price
Sale price
$59.74
ex VAT
In stock
Price Break
2+
$40.01
5+
$37.76
10+
$37.31
29+
$36.86
49+
$36.41
75+
$35.97
100+
$33.72
200+
$33.27
250+
$32.82
500+
$32.37
1000+
$31.47
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 18.9mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 30.17mm |
| Plate Width Inner max (E) | 4.06mm |
| Plate Width Outer max (F) | 4.06mm |
| Pin Diameter max (G) | 9.54mm |
| Pin Length max (H2) | 75.4mm |
| Connecting Link Extension max (J) | 4.2mm |
| Transverse Pitch nom (K) | 35.76mm |
| ISO606 Tensile Strength min | 174000 N |
| Weight | 0.08kg/m |
