SKU: 100-2-NO11-DUN
Branded 100-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
- Regular price
- $13.97 ex VAT
- Sale price
- $13.97
- Regular price
-
In stock
Quantity Price Breaks
2
$12.43
5
$11.73
10
$11.60
29
$11.46
49
$11.32
75
$11.18
100
$10.48
200
$10.34
250
$10.20
500
$10.06
1000
$9.78
SKU:
100-2-NO11-DUN
Branded 100-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
- Regular price
- $13.97 ex VAT
- Sale price
- $13.97
- Regular price
-
Description

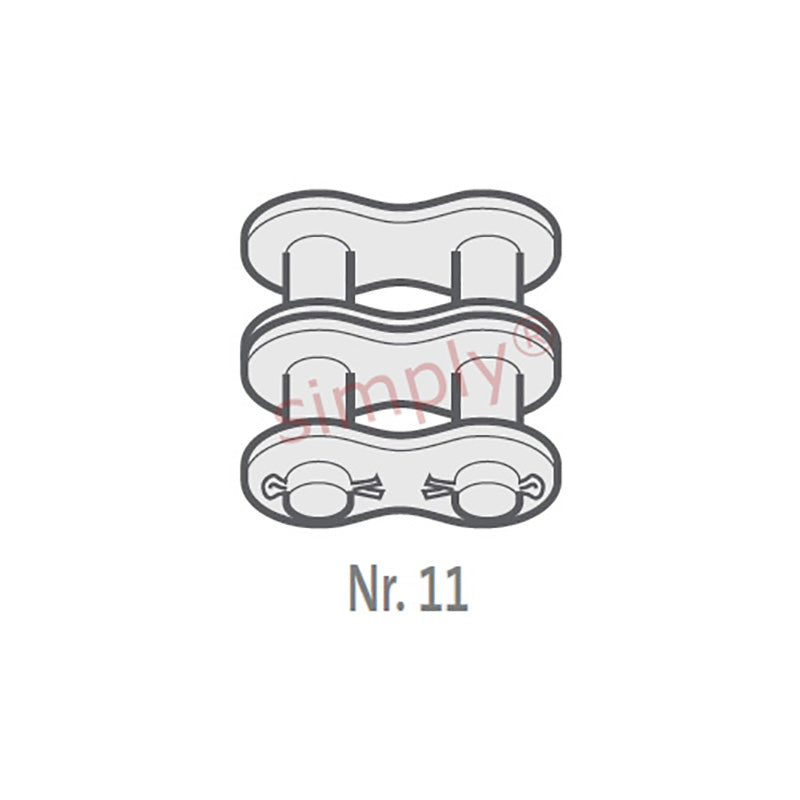

Branded COT / No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Technical
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 18.9mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 30.1mm |
| Plate Width Inner max (E) | = | 3.9mm |
| Plate Width Outer max (F) | = | 3.9mm |
| Pin Diameter max (G) | = | 9.53mm |
| Pin Length max (H2) | = | 76.2mm |
| Connecting Link Extension max (J) | = | 4.3mm |
| Transverse Pitch nom (K) | = | 35.76mm |
| ISO606 Tensile Strength min | = | 174000 N |
| Weight | = | 0.08kg/m |
