• Renold Standard Duty 100-2 ANSI / AS Duplex Roller Chain 1-1/4 inch Pitch - 10 Feet Length
  • Renold
1 2

SKU: 100-2-SD-10FT-RENOLD

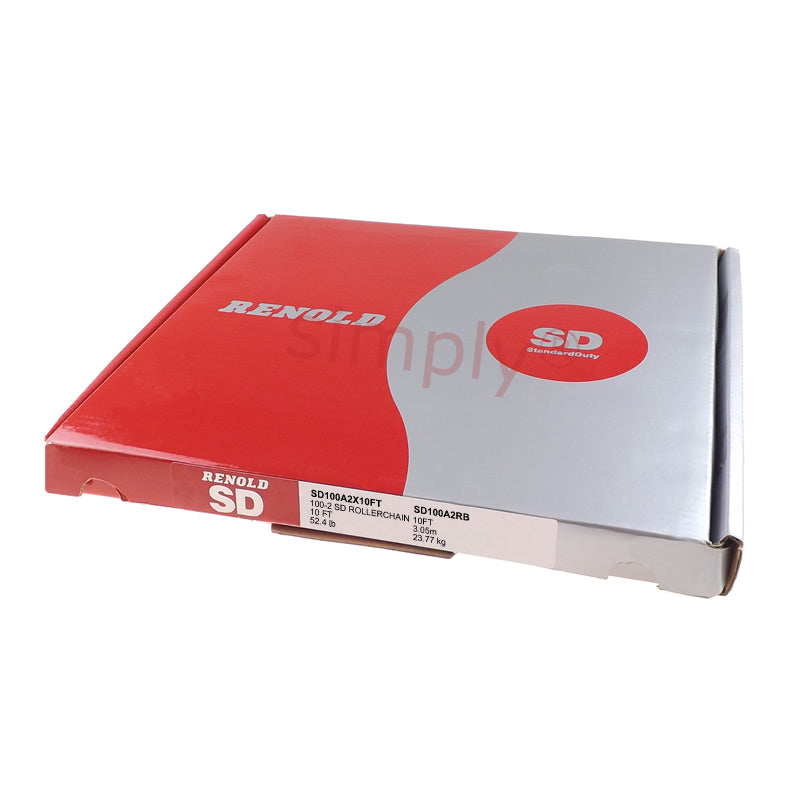

Renold Standard Duty 100-2 ANSI / AS Duplex Roller Chain 1-1/4 inch Pitch - 10 Feet Length

Renold Standard Duty 100-2 ANSI / AS Duplex Roller Chain 1-1/4 inch Pitch - 10 Feet Length
$318.44 ex VAT
$318.44 ex VAT
Sale Sold out

Equivalent to: SD100-2

In stock

Price Break
0+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
31.75mm = 1.25 (1-1/4) inch
Technical
Pitch (A) 1.25 inch
Pitch (A) 31.75mm
Inside Width min (B) 18.9mm
Roller Diameter max (C) 19.05mm
Plate Height max (D) 30.1mm
Plate Width Inner max (E) 3.9mm
Plate Width Outer max (F) 3.9mm
Pin Diameter max (G) 9.53mm
Pin Length max (H2) 76.2mm
Connecting Link Extension max (J) 4.3mm
Transverse Pitch nom (K) 35.76mm
ISO606 Tensile Strength min 174000 N
Weight 7.8kg/m
