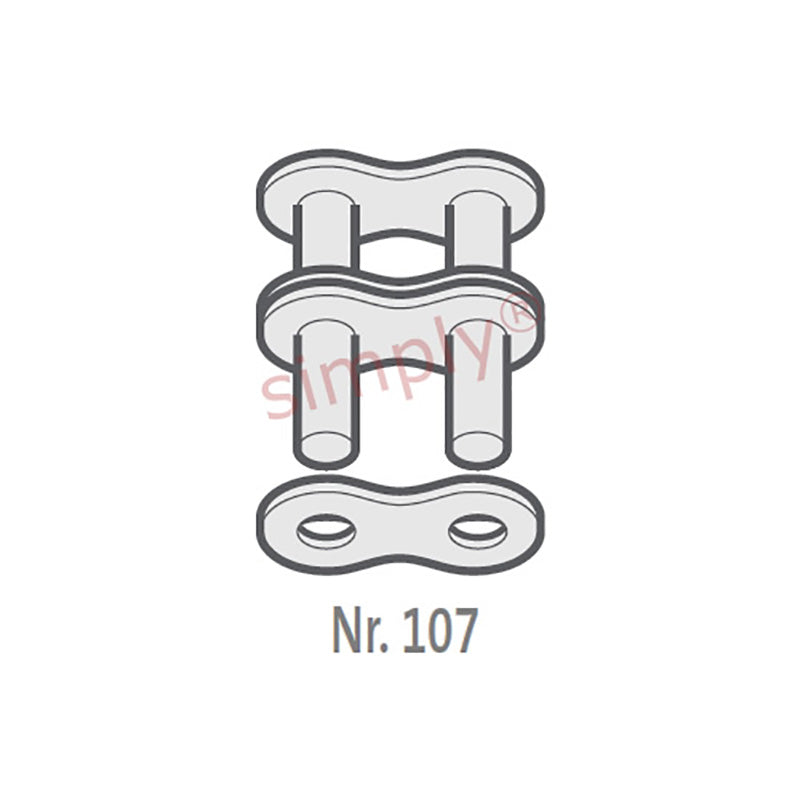

• Renold SD 100-2-NO107 ANSI / AS Duplex Chain Outer Link To Be Riveted 1-1/4 inch Pitch
  • Renold
1 2

SKU: 100-2-SD-NO107-RENOLD

Renold SD 100-2-NO107 ANSI / AS Duplex Chain Outer Link To Be Riveted 1-1/4 inch Pitch

Renold SD 100-2-NO107 ANSI / AS Duplex Chain Outer Link To Be Riveted 1-1/4 inch Pitch
$28.66 ex VAT
$28.66 ex VAT
Sale Sold out

In stock

Price Break
2+ $19.20
5+ $18.12
10+ $17.90
29+ $17.69
49+ $17.47
75+ $17.25
100+ $16.18
200+ $15.96
250+ $15.74
500+ $15.53
1000+ $15.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
31.75mm = 1.25 (1-1/4) inch
Technical
Pitch (A) 1.25 inch
Pitch (A) 31.75mm
Inside Width min (B) 18.9mm
Roller Diameter max (C) 19.05mm
Plate Height max (D) 30.1mm
Plate Width Inner max (E) 3.9mm
Plate Width Outer max (F) 3.9mm
Pin Diameter max (G) 9.53mm
Pin Length max (H2) 76.2mm
Connecting Link Extension max (J) 4.3mm
Transverse Pitch nom (K) 35.76mm
ISO606 Tensile Strength min 174000 N
Weight 0.08kg/m
