SKU: 100-2-SD-NO11-RENOLD
Renold SD 100-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
- Regular price
- $28.43 ex VAT
- Sale price
- $28.43
- Regular price
-
Not in stock
Quantity Price Breaks
2
$25.30
5
$23.88
10
$23.60
29
$23.31
49
$23.03
75
$22.74
100
$21.32
200
$21.04
250
$20.75
500
$20.47
1000
$19.90
SKU:
100-2-SD-NO11-RENOLD
Renold SD 100-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
- Regular price
- $28.43 ex VAT
- Sale price
- $28.43
- Regular price
-
Description

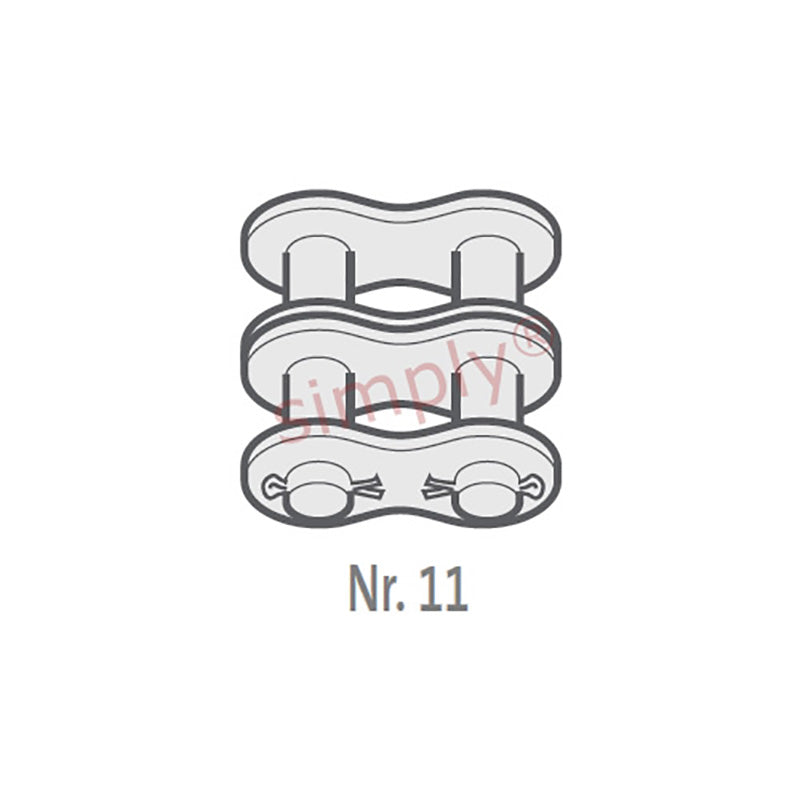

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 18.9mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 30.1mm |
| Plate Width Inner max (E) | = | 3.9mm |
| Plate Width Outer max (F) | = | 3.9mm |
| Pin Diameter max (G) | = | 9.53mm |
| Pin Length max (H2) | = | 76.2mm |
| Connecting Link Extension max (J) | = | 4.3mm |
| Transverse Pitch nom (K) | = | 35.76mm |
| ISO606 Tensile Strength min | = | 174000 N |
| Weight | = | 0.08kg/m |
