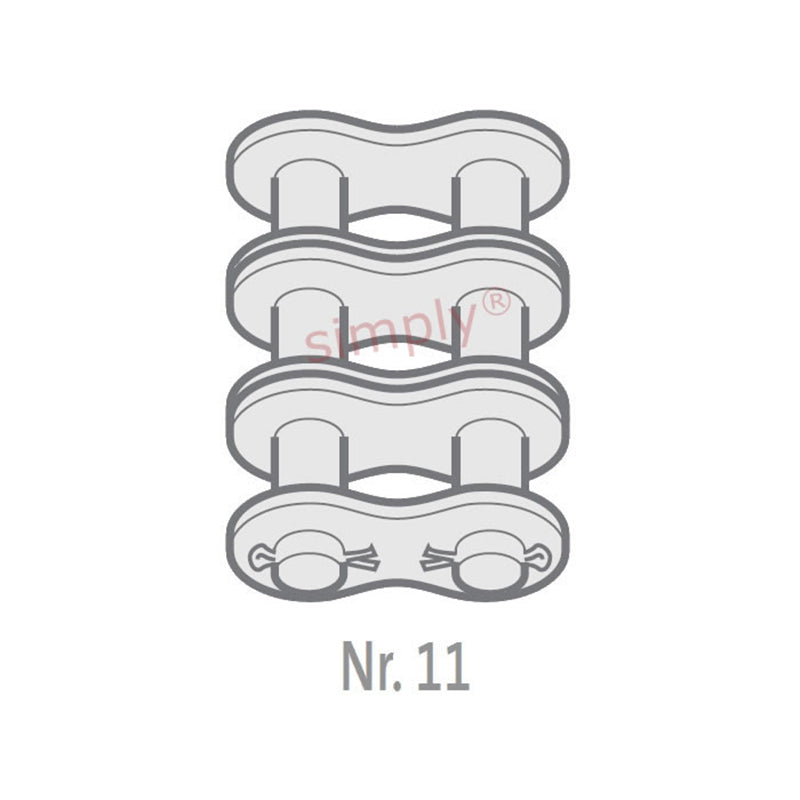

• Branded 100-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
1 1

SKU: 100-3-NO11-DUN

Branded 100-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch

Branded 100-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
$19.62 ex VAT
$19.62 ex VAT
Sale Sold out

Equivalent to: 100-3-CL-COT 100-3-CL

In stock

Price Break
2+ $13.14
5+ $12.41
10+ $12.26
29+ $12.11
49+ $11.96
75+ $11.81
100+ $11.08
200+ $10.93
250+ $10.78
500+ $10.63
1000+ $10.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Branded - Good Quality
Pitch:
31.75mm = 1.25 (1-1/4) inch
Technical
Pitch (A) 1.25 inch
Pitch (A) 31.75mm
Inside Width min (B) 18.9mm
Roller Diameter max (C) 19.05mm
Plate Height max (D) 30.1mm
Plate Width Inner max (E) 3.9mm
Plate Width Outer max (F) 3.9mm
Pin Diameter max (G) 9.53mm
Pin Length max (H1) 26.2mm
Connecting Link Extension max (J) 9.60000000000001mm
ISO606 Tensile Strength min 261000 N
Weight 35.76kg/m
