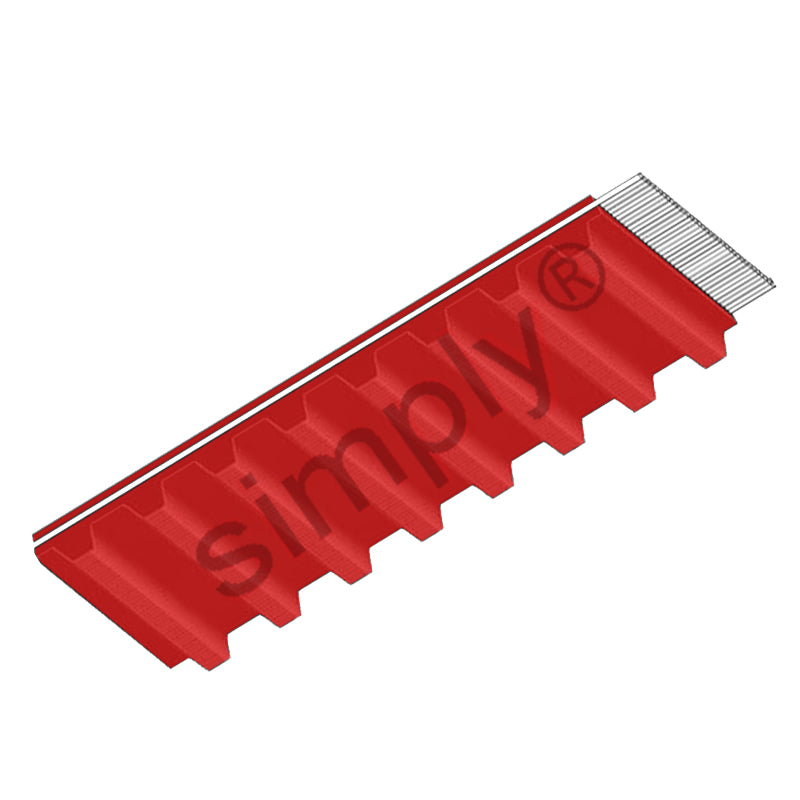

100AT5/390/G3 ContiTech Gen III Synchroflex Timing Belt 100mm Width 5mm Pitch 78 Teeth

SKU: 100AT5/390/G3

100AT5/390/G3 ContiTech Gen III Synchroflex Timing Belt 100mm Width 5mm Pitch 78 Teeth

$190.61 ex VAT
$190.61
ex VAT
Not in stock

Quantity Price Breaks

3 $169.64
5 $160.11
10 $158.21
15 $156.30
20 $154.39
30 $152.49
40 $142.96
50 $141.05
60 $139.15
75 $137.24
100 $133.43
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
100AT5/390/G3 ContiTech Gen III Synchroflex Timing Belt 100mm Width 5mm Pitch 78 Teeth
SKU: 100AT5/390/G3

100AT5/390/G3 ContiTech Gen III Synchroflex Timing Belt 100mm Width 5mm Pitch 78 Teeth

$190.61 ex VAT
$190.61
ex VAT

Description

AT Generation 3 SYNCHROFLEX® Timing Belts: This belt is manufactured by ContiTech, specialists in rubber and plastics technology. This Synchroflex belt is a truly endless belt, suitable for AT pulleys.

The Generation 3 (Gen III) Synchroflex belt construction consists of high-tensile steel cord tension members and wear-resistant polyurethane which makes this belt extremely durable and provides high performance. Also, this belt provides an impressive 25% increase in power transmission when compared to the AT/ATP standard.

Benefits: Low elastic elongation, high flank load capacity, 25% more power than standard AT and high-performance polyurethane & steel reinforced.

Technical

No of Teeth = 78
Belt Width = 100mm
Belt Pitch = 5mm (AT5)
Belt Length = 390mm
Belt Thickness (hs) = 1.5mm
Tooth Height (ht) = 1.2mm
Tooth Pitch (t) = 5mm
Flank Angle (f) = 50 deg
Tension Member Loadings = 9117 N
Belt Weight (per metre) = 0.36kg
