• 100X3SPA 100mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
  • 100X3SPA 100mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
1 2

SKU: 100SPA3-MB

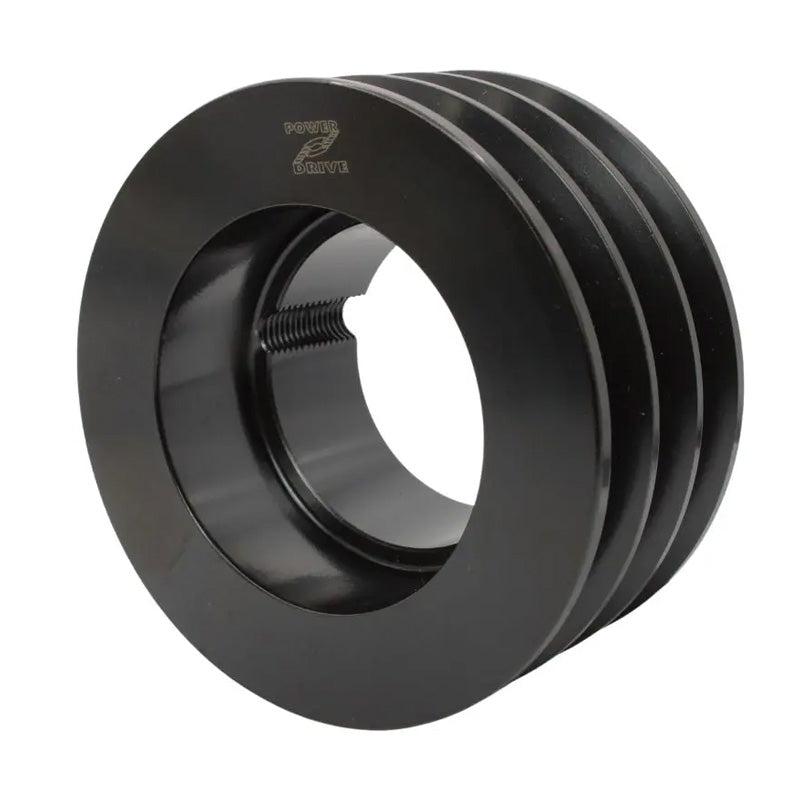

100X3SPA 100mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

100X3SPA 100mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
$20.95 ex VAT
$20.95 ex VAT
Sale Sold out

In stock

Price Break
3+ $14.03
5+ $13.24
9+ $13.09
19+ $12.93
49+ $12.77
74+ $12.61
99+ $11.82
199+ $11.67
249+ $11.51
499+ $11.35
999+ $11.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
3
Outside Diameter:
106.2mm
Pitch Diameter:
100mm
Max Bore:
42mm

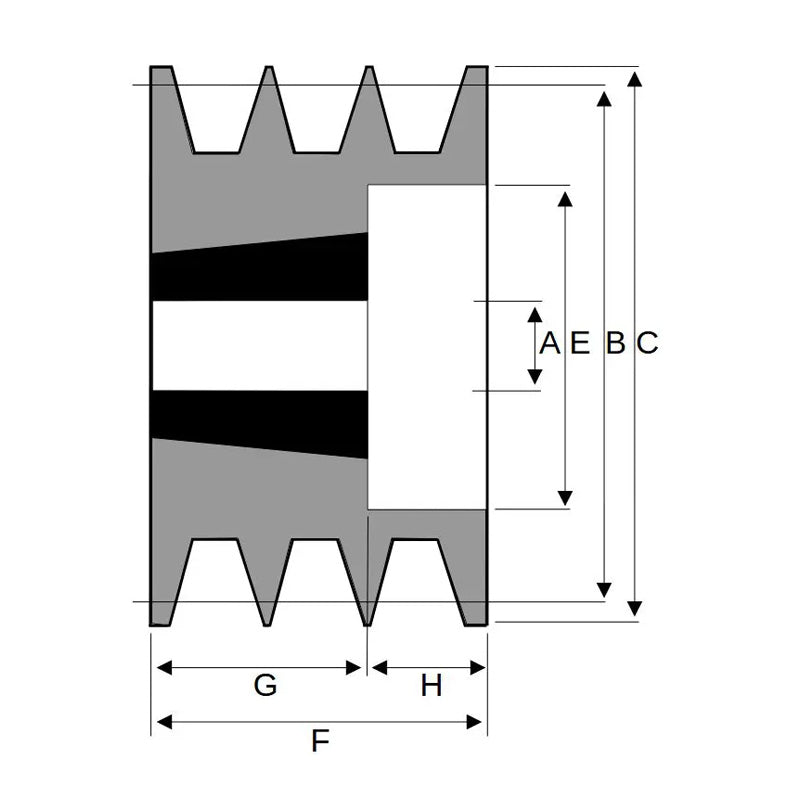

Technical
Number of Grooves 3
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=1610+tapered+locking+bush">1610 Click Here</a>
Pitch Diameter B 100mm
Overall Outer Diameter C 106.2mm
Max Bore A 42mm
Overall Sheave Depth F 50mm
Bush Seat Length G 25mm
Inner Recess Diameter D 66mm
Inner Recess Length H 30mm
