SKU: 100SPA4-MB

100X4SPA 100mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

100X4SPA 100mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$24.25 ex VAT
$24.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $16.24
5+ $15.33
9+ $15.15
19+ $14.96
49+ $14.78
74+ $14.60
99+ $13.69
199+ $13.50
249+ $13.32
499+ $13.14
999+ $12.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
106.2mm
Pitch Diameter:
100mm
Max Bore:
42mm

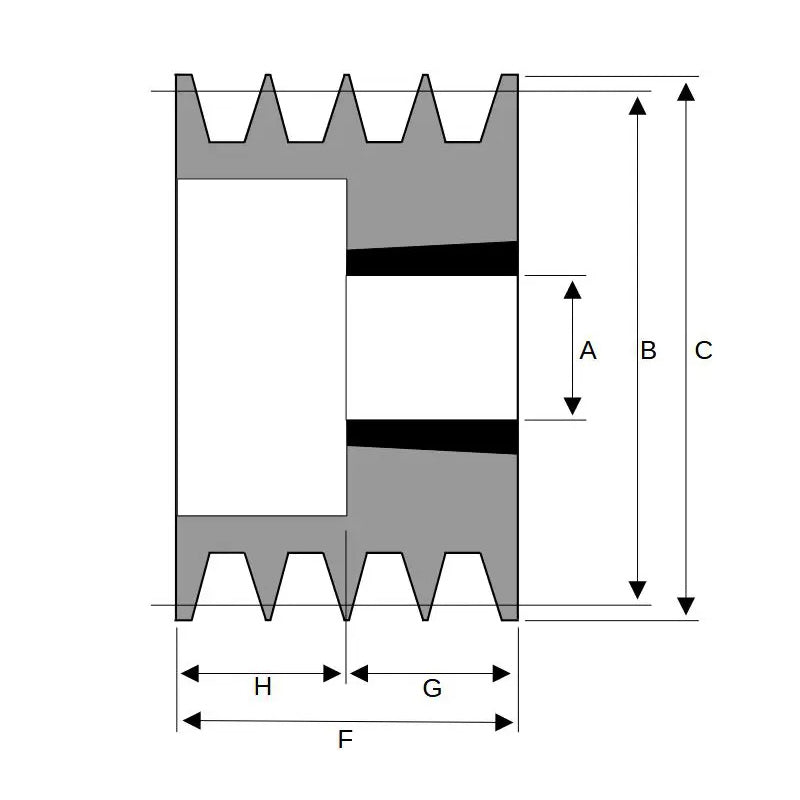

Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=1610+tapered+locking+bush">1610 Click Here</a>
Pitch Diameter B 100mm
Overall Outer Diameter C 106.2mm
Max Bore A 42mm
Outer Hub Diameter E mm
Overall Sheave Depth F 65mm
Bush Seat Length G 28mm
Inner Recess Diameter D 66mm
