• 100X3SPB 100mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
  • 100X3SPB 100mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
1 2

SKU: 100SPB3-MB

100X3SPB 100mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

100X3SPB 100mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
$26.22 ex VAT
$26.22 ex VAT
Sale Sold out

In stock

Price Break
3+ $17.56
5+ $16.57
9+ $16.37
19+ $16.18
49+ $15.98
74+ $15.78
99+ $14.80
199+ $14.60
249+ $14.40
499+ $14.20
999+ $13.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
3
Outside Diameter:
107.6mm
Pitch Diameter:
100mm
Max Bore:
42mm

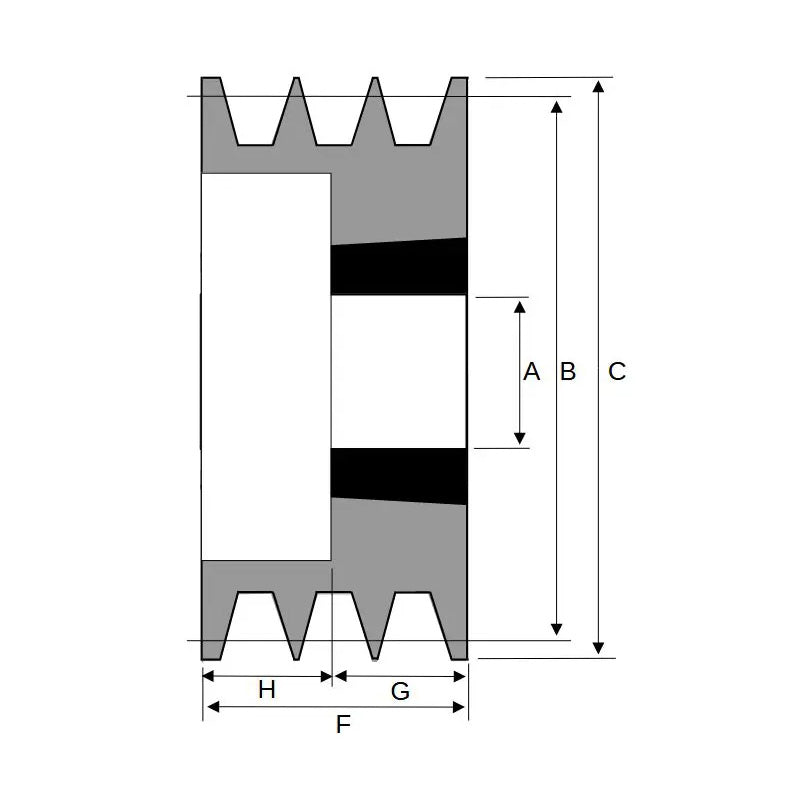

Technical
Number of Grooves 3
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=1610+tapered+locking+bush">1610 Click Here</a>
Pitch Diameter B 100mm
Overall Outer Diameter C 107.6mm
Max Bore A 42mm
Overall Sheave Depth F 63mm
Bush Seat Length G 25mm
Inner Recess Diameter D 62mm
Inner Recess Length H 38mm
