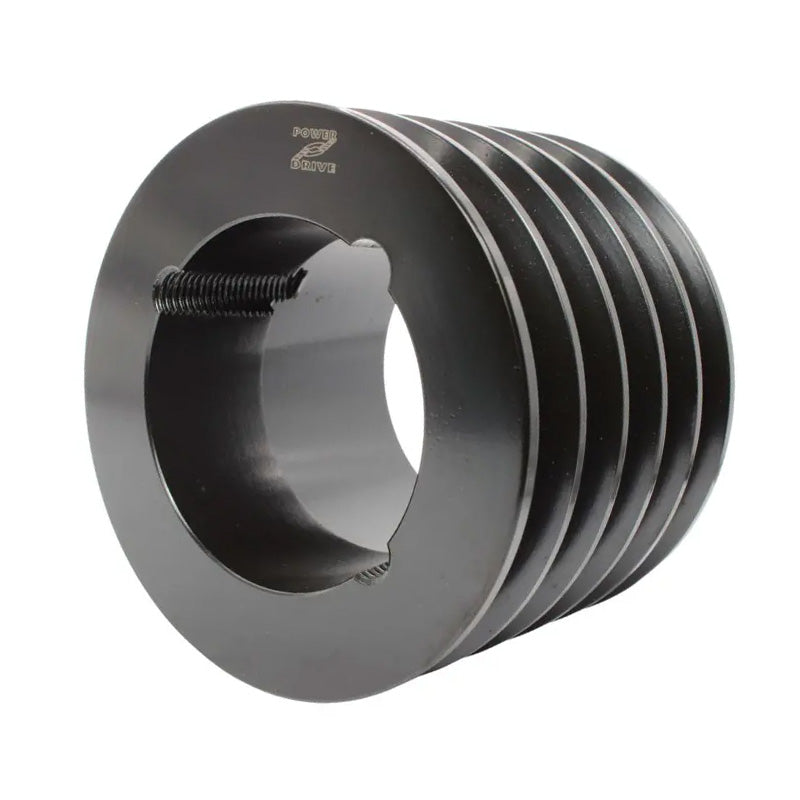

• 100X5SPZ 100mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 1

SKU: 100SPZ5-MB

100X5SPZ 100mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

100X5SPZ 100mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$22.88 ex VAT
$22.88 ex VAT
Sale Sold out

In stock

Price Break
3+ $15.33
5+ $14.47
9+ $14.29
19+ $14.12
49+ $13.95
74+ $13.78
99+ $12.92
199+ $12.74
249+ $12.57
499+ $12.40
999+ $12.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
104.6mm
Pitch Diameter:
100mm
Max Bore:
50mm
Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2012+tapered+locking+bush">2012 Click Here</a>
Pitch Diameter B 100mm
Overall Outer Diameter C 104.6mm
Max Bore A 50mm
Overall Sheave Depth F 64mm
Bush Seat Length G 32mm
Inner Recess Diameter D 71mm
Inner Recess Length H 32mm
