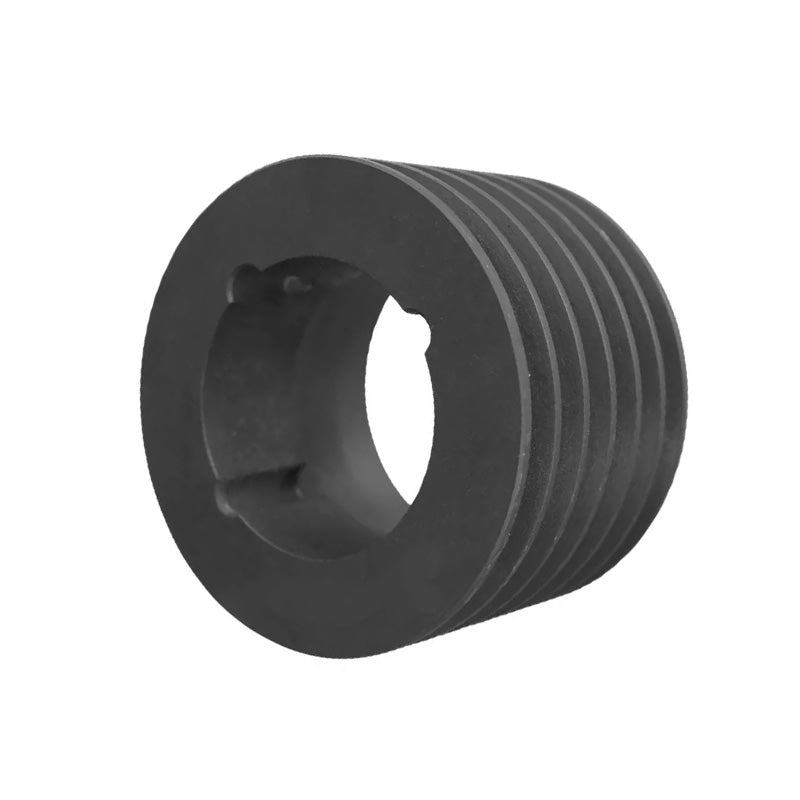

• 100X6SPZ 100mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
1 1

SKU: 100SPZ6-MB

100X6SPZ 100mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

100X6SPZ 100mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$24.82 ex VAT
$24.82 ex VAT
Sale Sold out

In stock

Price Break
3+ $16.62
5+ $15.69
9+ $15.50
19+ $15.32
49+ $15.13
74+ $14.94
99+ $14.01
199+ $13.82
249+ $13.64
499+ $13.45
999+ $13.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
104.6mm
Pitch Diameter:
100mm
Max Bore:
50mm
Technical
Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2012+tapered+locking+bush">2012 Click Here</a>
Pitch Diameter B 100mm
Overall Outer Diameter C 104.6mm
Max Bore A 50mm
Overall Sheave Depth F 76mm
Bush Seat Length G 32mm
Inner Recess Diameter D 71mm
Inner Recess Length H 44mm
