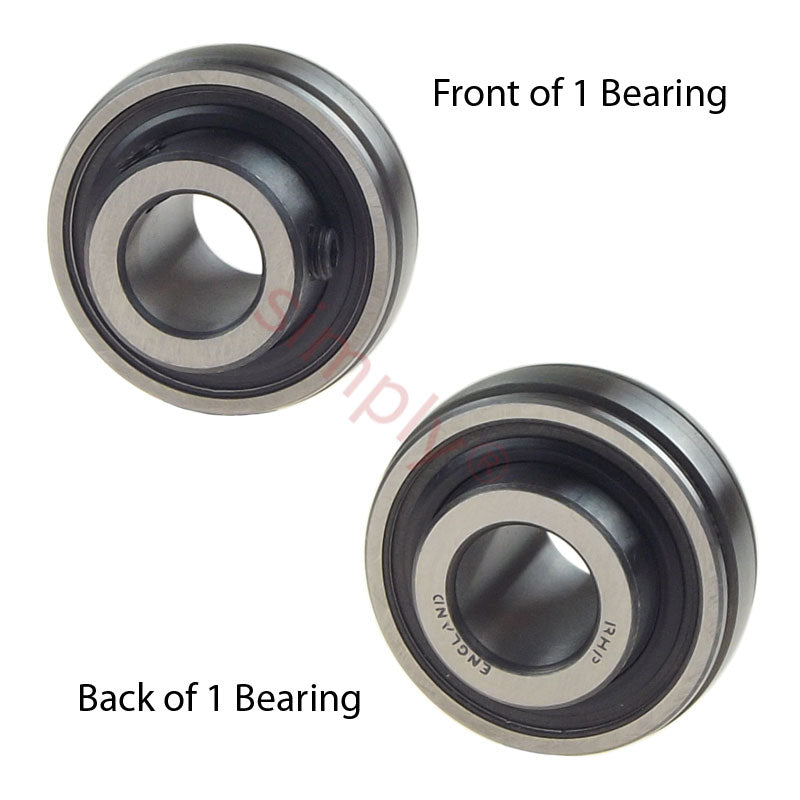

• RHP 1020-3/4GHLT Spherical Outer Full Width Bearing Insert 3/4 inch Bore 47mm Outside Diameter High to Low Temperature
1 1

SKU: 1020-3/4GHLT.RHP

RHP 1020-3/4GHLT Spherical Outer Full Width Bearing Insert 3/4 inch Bore 47mm Outside Diameter High to Low Temperature

RHP 1020-3/4GHLT Spherical Outer Full Width Bearing Insert 3/4 inch Bore 47mm Outside Diameter High to Low Temperature
$35.58 ex VAT
$35.58 ex VAT
Sale Sold out

In stock

Price Break
10+ $23.83
20+ $22.49
30+ $22.22
40+ $21.96
50+ $21.69
75+ $21.42
100+ $20.08
200+ $19.81
250+ $19.55
500+ $19.28
1000+ $18.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1000 GHLT Series: Full width bearing insert with relubrication facility and a high/low temperature bearing insert. The Bearing has a spherical outer race and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. The GHLT series has a wide operating temperature range from -40 deg to +180 deg C. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, High/Low Temperature, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Outside Diameter:
47mm
Style:
1020
Technical
Bore 3/4 inch
D 1.8504 inch
C 0.551 inch
B 1.219 inch
s 0.502 inch
d1 1.122 inch
M 0.211 inch
r 0.039 inch
Dynamic load Cr 12800 N
Static load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.13 kg
