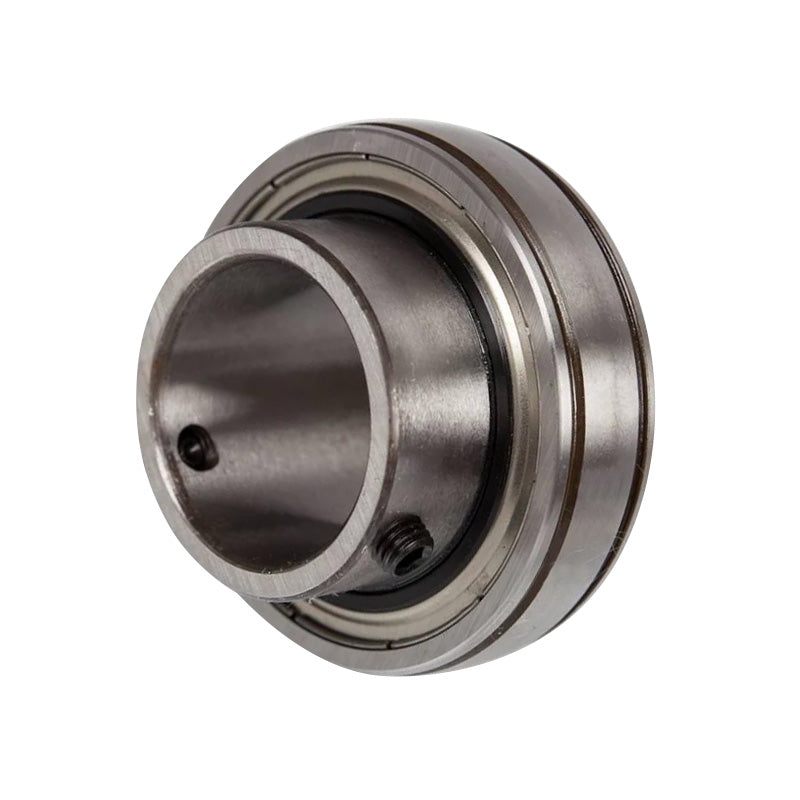

• RHP 1025-15/16G Spherical Outer Full Width Bearing Insert 15/16 inch Bore 52mm Outside Diameter
1 1

SKU: 1025-15/16G-RHP

RHP 1025-15/16G Spherical Outer Full Width Bearing Insert 15/16 inch Bore 52mm Outside Diameter

RHP 1025-15/16G Spherical Outer Full Width Bearing Insert 15/16 inch Bore 52mm Outside Diameter
$33.07 ex VAT
$33.07 ex VAT
Sale Sold out

In stock

Price Break
10+ $22.15
20+ $20.91
30+ $20.66
40+ $20.41
50+ $20.16
75+ $19.91
100+ $18.67
200+ $18.42
250+ $18.17
500+ $17.92
1000+ $17.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
23.81mm = 0.937 (15/16) inch
Outside Diameter:
52mm
Style:
1025
Technical
Bore 15/16 inch
D 2.0472 inch
C 0.591 inch
B 1.343 inch
s 0.564 inch
d1 1.339 inch
M 0.211 inch
r 0.039 inch
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 0.17 kg
