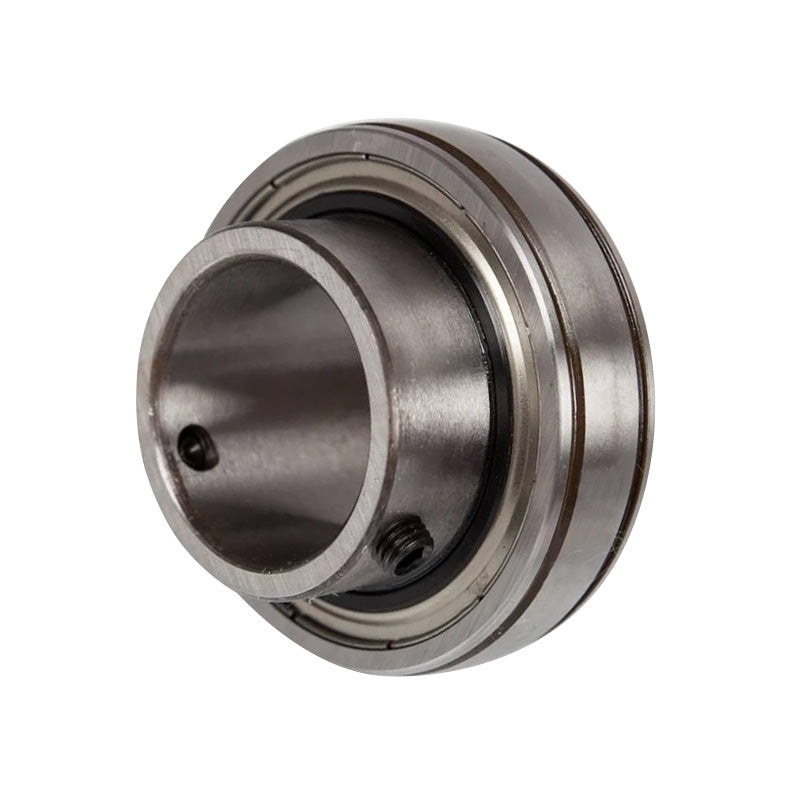

• RHP 1030-1G Spherical Outer Full Width Bearing Insert 1 inch Bore 62mm Outside Diameter
1 1

SKU: 1030-1G-RHP

RHP 1030-1G Spherical Outer Full Width Bearing Insert 1 inch Bore 62mm Outside Diameter

RHP 1030-1G Spherical Outer Full Width Bearing Insert 1 inch Bore 62mm Outside Diameter
$39.01 ex VAT
$39.01 ex VAT
Sale Sold out

In stock

Price Break
10+ $26.13
20+ $24.66
30+ $24.37
40+ $24.08
50+ $23.78
75+ $23.49
100+ $22.02
200+ $21.73
250+ $21.43
500+ $21.14
1000+ $20.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
25.4mm = 1 inch
Outside Diameter:
62mm
Style:
1030
Technical
Bore 1 inch
D 2.4409 inch
C 0.63 inch
B 1.5 inch
s 0.627 inch
d1 1.575 inch
M 0.23 inch
r 0.039 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 0.37 kg
