SKU: 1030-7/8G-RHP

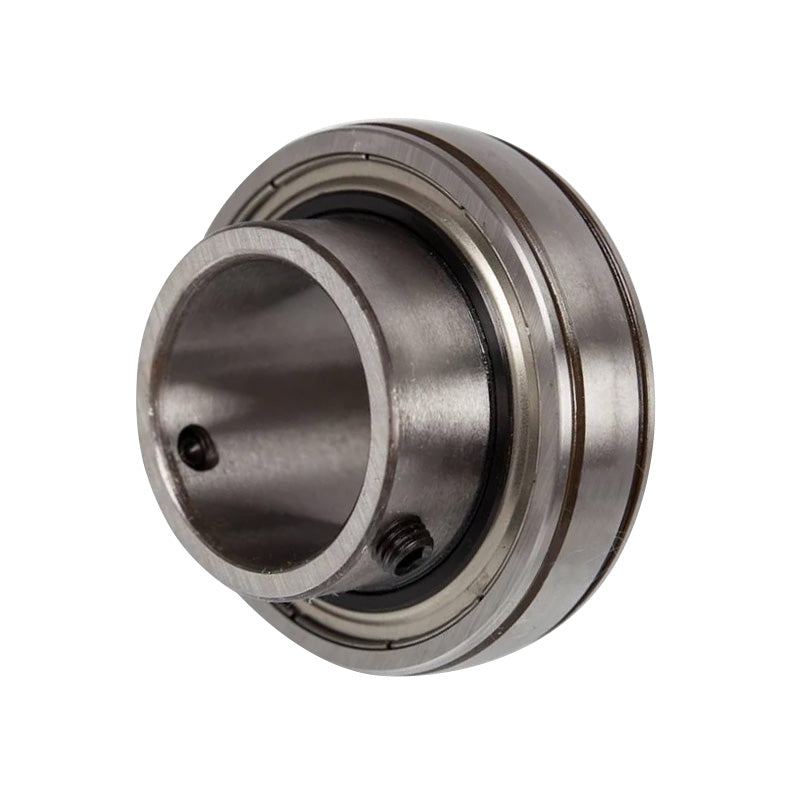

RHP 1030-7/8G Spherical Outer Full Width Bearing Insert 7/8 inch Bore 62mm Outside Diameter
RHP 1030-7/8G Spherical Outer Full Width Bearing Insert 7/8 inch Bore 62mm Outside Diameter
Out of stock
Description
Description
|
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 62mm
- Style:
- 1030
Technical
Technical
| Bore | 7/8 inch |
|---|---|
| D | 2.4409 inch |
| C | 0.63 inch |
| B | 1.5 inch |
| s | 0.627 inch |
| d1 | 1.575 inch |
| M | 0.23 inch |
| r | 0.039 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 0.37 kg |
