SKU: 106SPB3-MB

106X3SPB 106mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

106X3SPB 106mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
$27.26 ex VAT
$27.26 ex VAT
Sale Sold out

In stock

Price Break
3+ $18.26
5+ $17.24
9+ $17.03
19+ $16.83
49+ $16.62
74+ $16.42
99+ $15.39
199+ $15.19
249+ $14.98
499+ $14.77
999+ $14.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
3
Outside Diameter:
113.6mm
Pitch Diameter:
106mm
Max Bore:
42mm

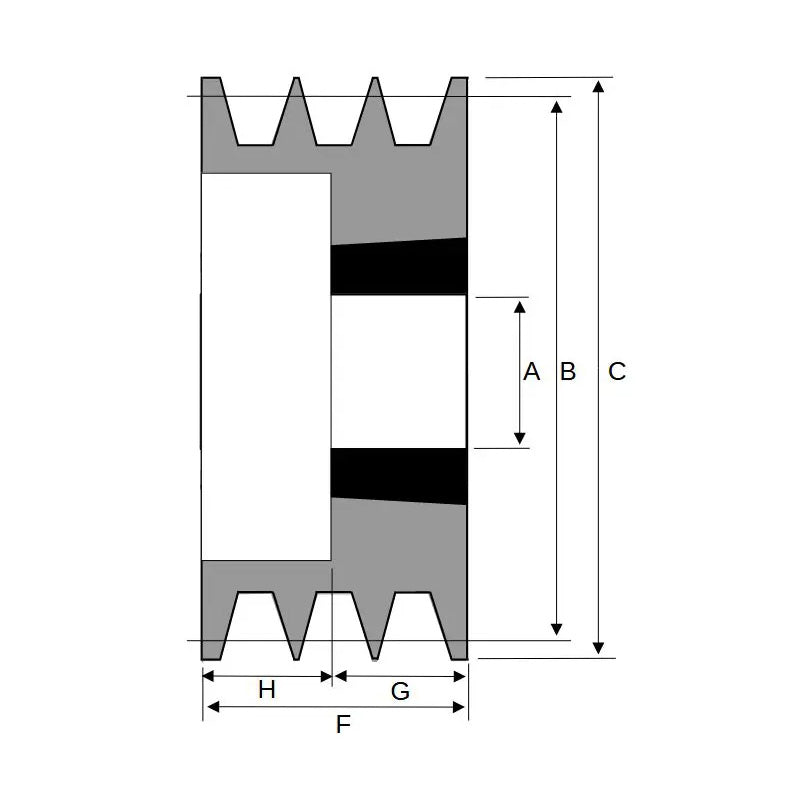

Technical
Number of Grooves 3
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=1610+tapered+locking+bush">1610 Click Here</a>
Pitch Diameter B 106mm
Overall Outer Diameter C 113.6mm
Max Bore A 42mm
Overall Sheave Depth F 63mm
Bush Seat Length G 25mm
Inner Recess Diameter D 67mm
Inner Recess Length H 38mm
