• 106X4SPZ 106mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 1

SKU: 106SPZ4-MB

106X4SPZ 106mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

106X4SPZ 106mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$25.10 ex VAT
$25.10 ex VAT
Sale Sold out

In stock

Price Break
3+ $16.81
5+ $15.87
9+ $15.68
19+ $15.49
49+ $15.30
74+ $15.11
99+ $14.17
199+ $13.98
249+ $13.79
499+ $13.60
999+ $13.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
110.6mm
Pitch Diameter:
106mm
Max Bore:
42mm
Technical

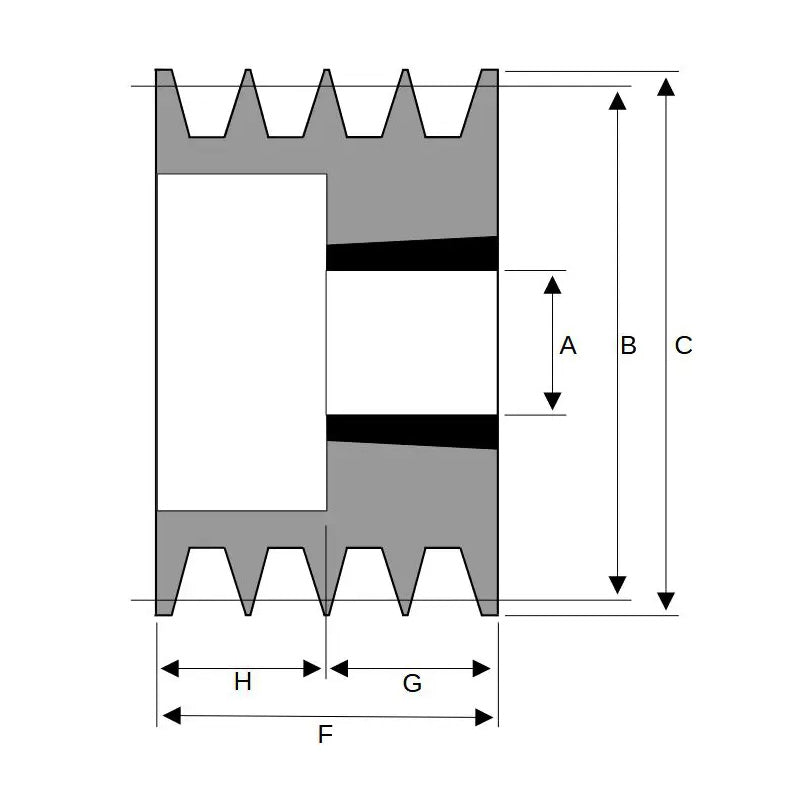

Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=1610+tapered+locking+bush">1610 Click Here</a>
Pitch Diameter B 106mm
Overall Outer Diameter C 110.6mm
Max Bore A 42mm
Overall Sheave Depth F 64mm
Bush Seat Length G 25mm
Inner Recess Diameter D 76mm
Inner Recess Length H 26mm
