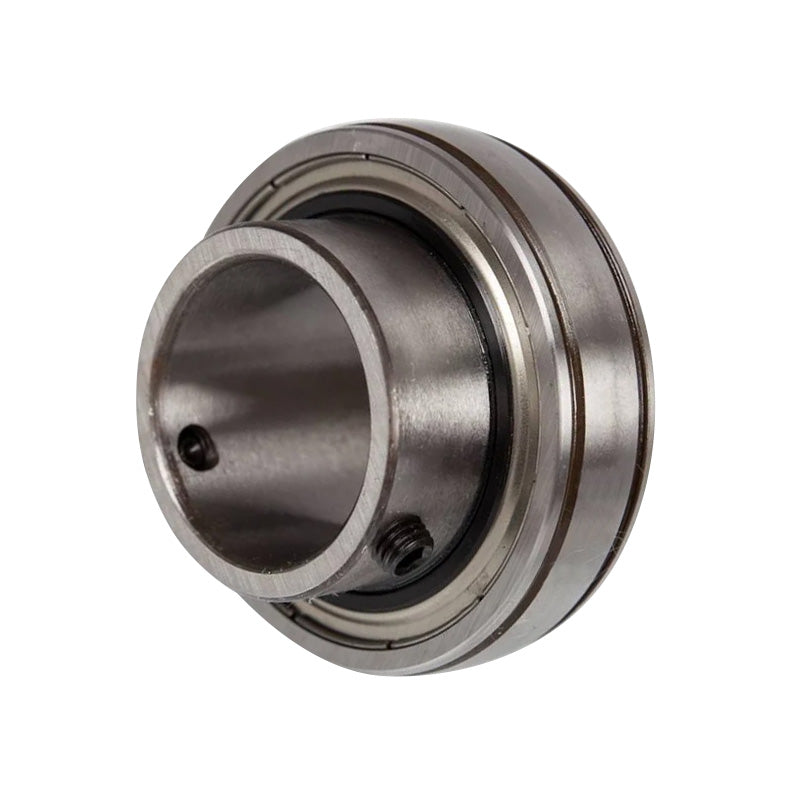

• RHP 1070-2-7/16G Spherical Outer Full Width Bearing Insert 2-7/16 inch Bore 125mm Outside Diameter
1 1

SKU: 1070-2.7/16G-RHP

RHP 1070-2-7/16G Spherical Outer Full Width Bearing Insert 2-7/16 inch Bore 125mm Outside Diameter

RHP 1070-2-7/16G Spherical Outer Full Width Bearing Insert 2-7/16 inch Bore 125mm Outside Diameter
$193.10 ex VAT
$193.10 ex VAT
Sale Sold out

In stock

Price Break
10+ $129.34
20+ $122.07
30+ $120.62
40+ $119.17
50+ $117.71
75+ $116.26
100+ $108.99
200+ $107.54
250+ $106.09
500+ $104.63
1000+ $101.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
61.91mm = 2.437 (2-7/16) inch
Outside Diameter:
125mm
Style:
1070
Technical
Bore 2-7/16 inch
D 4.9213 inch
C 0.945 inch
B 2.938 inch
s 1.19 inch
d1 3.425 inch
M 0.478 inch
r 0.059 inch
Dynamic load Cr 61000 N
Static load Cor 45000 N
Rec max speed 2450 rpm
Weight 2.27 kg
