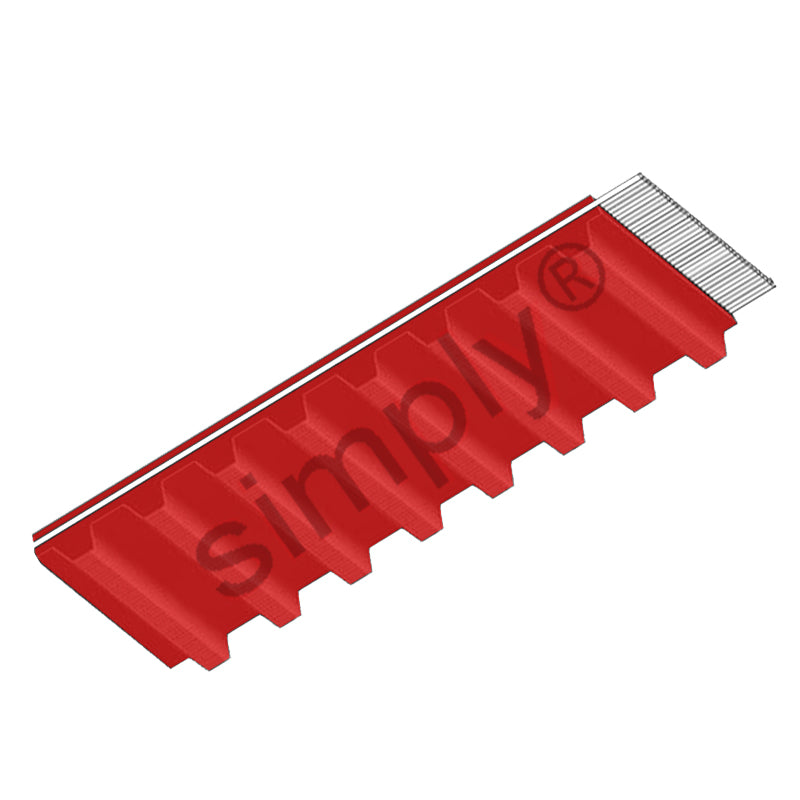

10AT5/225/G3 ContiTech Gen III Synchroflex Timing Belt 10mm Width 5mm Pitch 45 Teeth

SKU: 10AT5/225/G3

10AT5/225/G3 ContiTech Gen III Synchroflex Timing Belt 10mm Width 5mm Pitch 45 Teeth

$23.38 ex VAT
$23.38
ex VAT
In stock

Quantity Price Breaks

3 $20.81
5 $19.64
10 $19.41
15 $19.17
20 $18.94
30 $18.70
40 $17.54
50 $17.30
60 $17.07
75 $16.83
100 $16.37
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
10AT5/225/G3 ContiTech Gen III Synchroflex Timing Belt 10mm Width 5mm Pitch 45 Teeth
SKU: 10AT5/225/G3

10AT5/225/G3 ContiTech Gen III Synchroflex Timing Belt 10mm Width 5mm Pitch 45 Teeth

$23.38 ex VAT
$23.38
ex VAT

Description

AT Generation 3 SYNCHROFLEX® Timing Belts: This belt is manufactured by ContiTech, specialists in rubber and plastics technology. This Synchroflex belt is a truly endless belt, suitable for AT pulleys.

The Generation 3 (Gen III) Synchroflex belt construction consists of high-tensile steel cord tension members and wear-resistant polyurethane which makes this belt extremely durable and provides high performance. Also, this belt provides an impressive 25% increase in power transmission when compared to the AT/ATP standard.

Benefits: Low elastic elongation, high flank load capacity, 25% more power than standard AT and high-performance polyurethane & steel reinforced.

Technical

No of Teeth = 45
Belt Width = 10mm
Belt Pitch = 5mm (AT5)
Belt Length = 225mm
Belt Thickness (hs) = 1.5mm
Tooth Height (ht) = 1.2mm
Tooth Pitch (t) = 5mm
Flank Angle (f) = 50 deg
Tension Member Loadings = 787 N
Belt Weight (per metre) = 0.036kg
