• Branded 10B-1 BS Simplex Roller Chain 5/8 inch Pitch 5 Metres
1 1

SKU: 10B-1-5MTR-MB

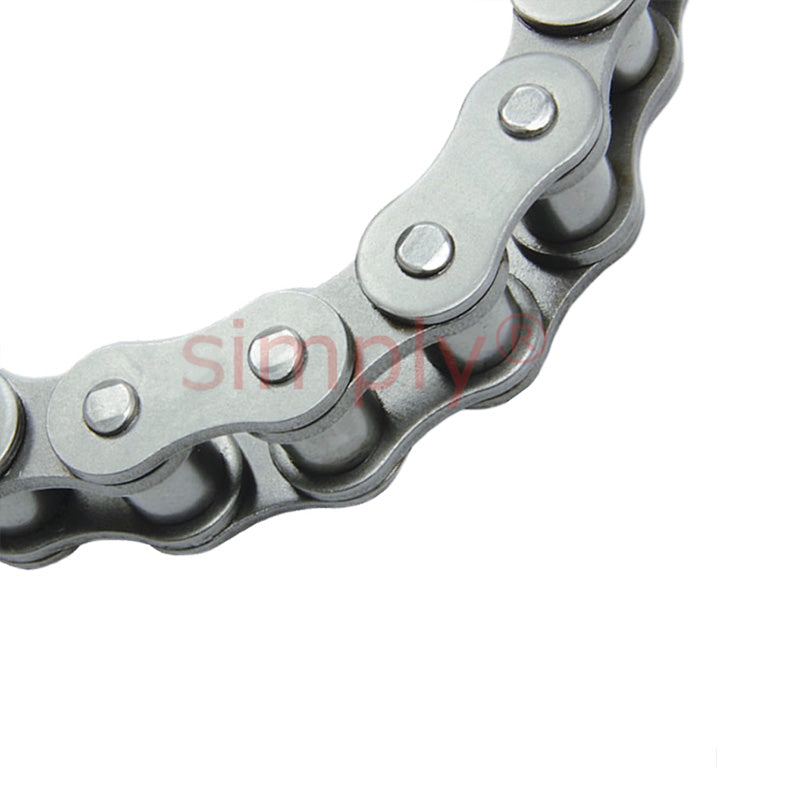

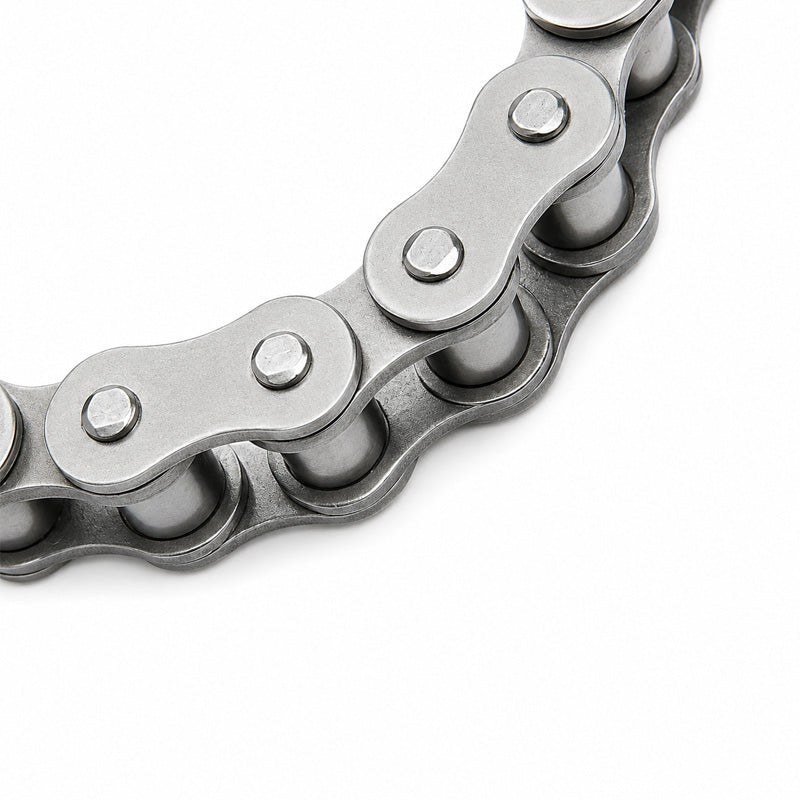

Branded 10B-1 BS Simplex Roller Chain 5/8 inch Pitch 5 Metres

Branded 10B-1 BS Simplex Roller Chain 5/8 inch Pitch 5 Metres
$72.21 ex VAT
$72.21 ex VAT
Sale Sold out

Equivalent to: 10B1

In stock

Price Break
2+ $48.37
5+ $45.65
10+ $45.11
29+ $44.56
49+ $44.02
75+ $43.48
100+ $40.76
200+ $40.22
250+ $39.67
500+ $39.13
1000+ $38.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
15.88mm = 0.625 (5/8) inch
Technical
Pitch (P) 15.88mm = 0.625 (5/8) inch
Roller Diameter (D1 max) 10.16mm
Width between inner plates (B1 min) 9.65mm
Pin dia meter (D2 max) 5.08mm
Pin length (L max) 19.5mm
Pin length (Lc max) 20.9mm
Inner plate depth (H2 max) 14.7mm
Plate thickness (T max) 1.7mm
Ultimate tensile strength (Q min) kN/LB 22.4/5091
Average tensile strength (Q0) kN 27.5
Weight per meter (q) kg/m 0.93
Reviews
View full details
