SKU: 10B-1-NO30-MB
Branded 10B-1-NO30 BS Simplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- $6.08 ex VAT
- Sale price
- $6.08
- Regular price
-
In stock
Quantity Price Breaks
2
$5.41
5
$5.11
10
$5.05
29
$4.99
49
$4.92
75
$4.86
100
$4.56
200
$4.50
250
$4.44
500
$4.38
1000
$4.26
SKU:
10B-1-NO30-MB
Branded 10B-1-NO30 BS Simplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- $6.08 ex VAT
- Sale price
- $6.08
- Regular price
-
Description

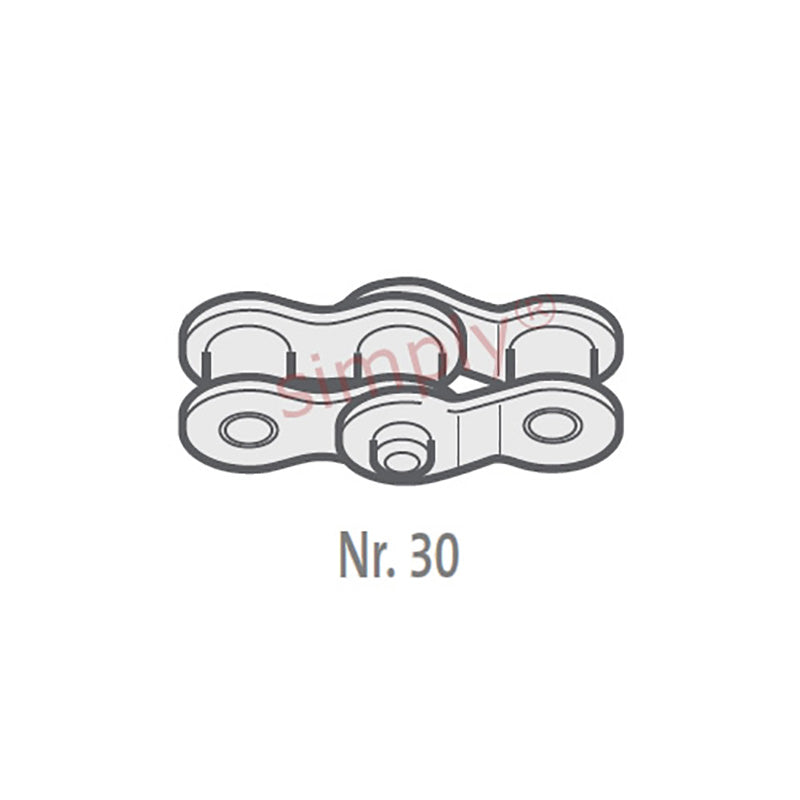

Branded DOL / No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.7mm |
| Plate Width Inner max (E) | = | 1.65mm |
| Plate Width Outer max (F) | = | 1.65mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H1) | = | 19.6mm |
| Connecting Link Extension max (J) | = | 1.4mm |
| ISO606 Tensile Strength min | = | 22200 N |
| Weight | = | 0.009kg/m |
