SKU: 10B-1-SYN-NO30-RENOLD
Renold Synergy 10B-1-NO30 BS Simplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- $26.02 ex VAT
- Sale price
- $26.02
- Regular price
-
Not in stock
Quantity Price Breaks
2
$23.16
5
$21.86
10
$21.60
29
$21.34
49
$21.08
75
$20.82
100
$19.52
200
$19.25
250
$18.99
500
$18.73
1000
$18.21
SKU:
10B-1-SYN-NO30-RENOLD
Renold Synergy 10B-1-NO30 BS Simplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- $26.02 ex VAT
- Sale price
- $26.02
- Regular price
-
Description

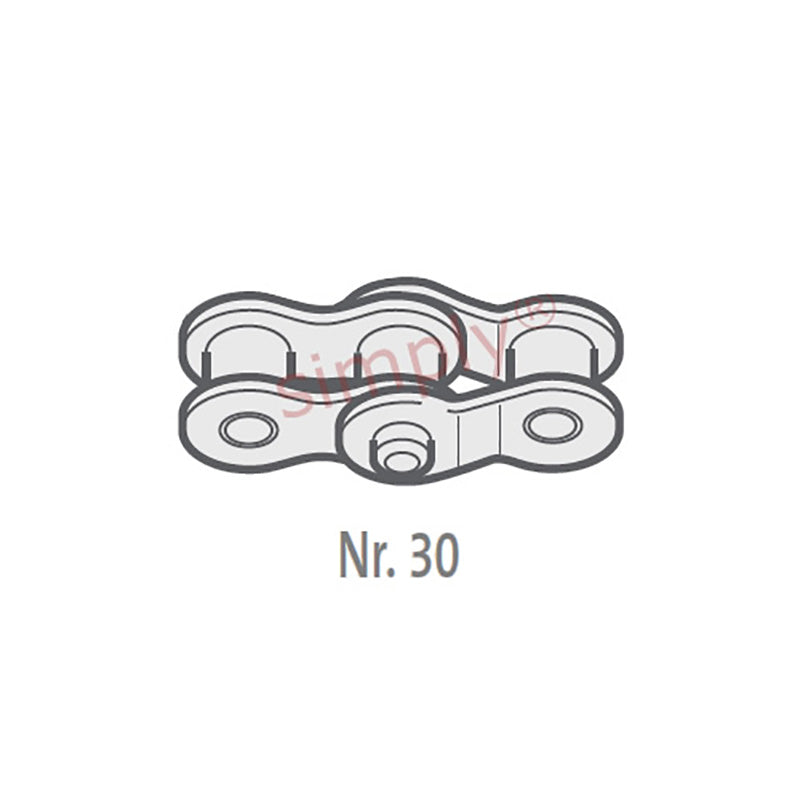

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H1) | = | 18.8mm |
| Connecting Link Extension max (J) | = | 2.5mm |
| ISO606 Tensile Strength min | = | 22200 N |
| Weight | = | 0.009kg/m |
