• Renold Blue Box 10B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
  • Renold
1 2

SKU: 10B-2-BB-NO26-RENOLD

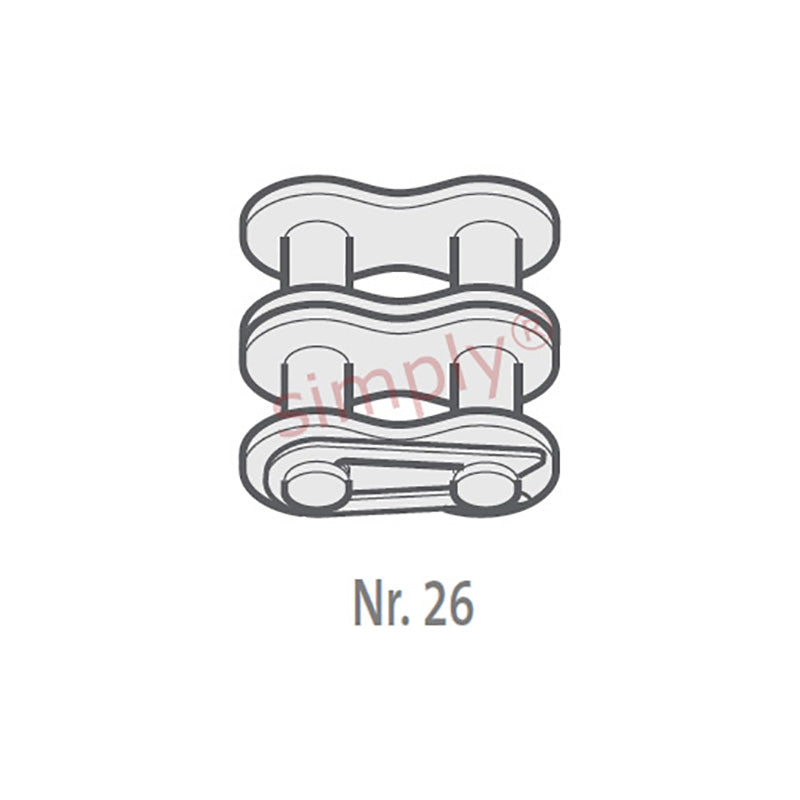

Renold Blue Box 10B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch

Renold Blue Box 10B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
$11.91 ex VAT
$11.91 ex VAT
Sale Sold out

In stock

Price Break
2+ $7.97
5+ $7.52
10+ $7.43
29+ $7.34
49+ $7.26
75+ $7.17
100+ $6.72
200+ $6.63
250+ $6.54
500+ $6.45
1000+ $6.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
15.88mm = 0.625 (5/8) inch
Technical
Pitch (A) 0.625 inch
Pitch (A) 15.875mm
Inside Width min (B) 9.65mm
Roller Diameter max (C) 10.16mm
Plate Height max (D) 14.6mm
Plate Width Inner max (E) 1.55mm
Plate Width Outer max (F) 1.55mm
Pin Diameter max (G) 5.08mm
Pin Length max (H1) 35.4mm
Connecting Link Extension max (J) 2.5mm
ISO606 Tensile Strength min 44500 N
Weight 0.009kg/m
