SKU: 10B-3-BB-NO30-RENOLD
Renold Blue Box 10B-3-NO30 BS Triplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- $29.93 ex VAT
- Sale price
- $29.93
- Regular price
-
Not in stock
Quantity Price Breaks
2
$26.64
5
$25.14
10
$24.84
29
$24.54
49
$24.24
75
$23.94
100
$22.45
200
$22.15
250
$21.85
500
$21.55
1000
$20.95
SKU:
10B-3-BB-NO30-RENOLD
Renold Blue Box 10B-3-NO30 BS Triplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- $29.93 ex VAT
- Sale price
- $29.93
- Regular price
-
Description

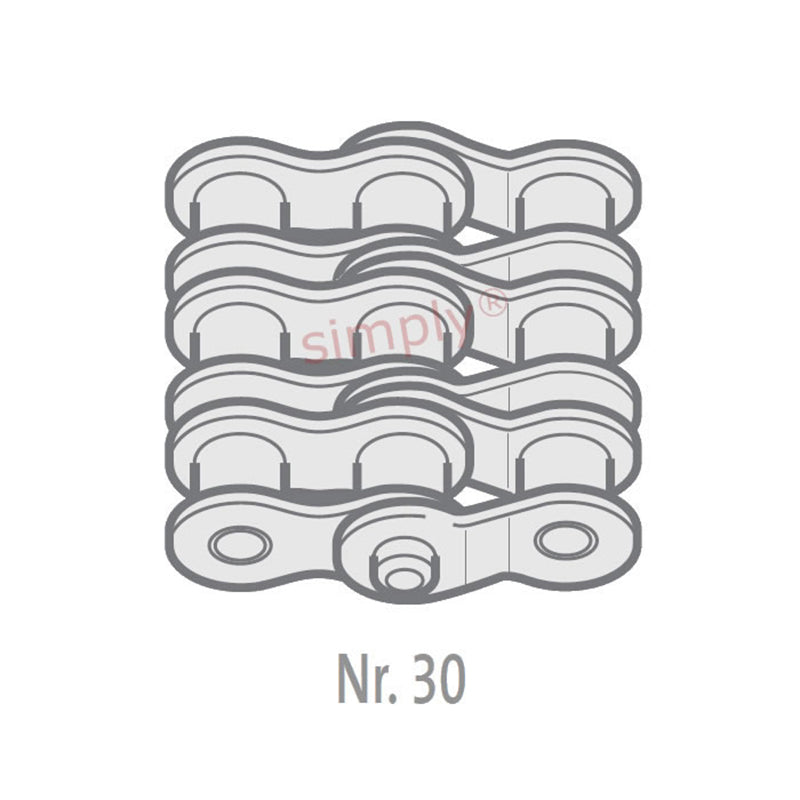

| Renold No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 52mm |
| Connecting Link Extension max (J) | = | 2.5mm |
| Transverse Pitch nom (K) | = | 16.59mm |
| ISO606 Tensile Strength min | = | 66700 N |
| Weight | = | 0.009kg/m |
