SKU: 10B-3-NO26-MB
Branded 10B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Branded 10B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Regular price
$6.30
ex VAT
Regular price
Sale price
$6.30
ex VAT
Equivalent to: 10B-3-CL
In stock
Price Break
2+
$4.22
5+
$3.98
10+
$3.93
29+
$3.89
49+
$3.84
75+
$3.79
100+
$3.55
200+
$3.51
250+
$3.46
500+
$3.41
1000+
$3.32
Quantity
Couldn't load pickup availability
Description
Description

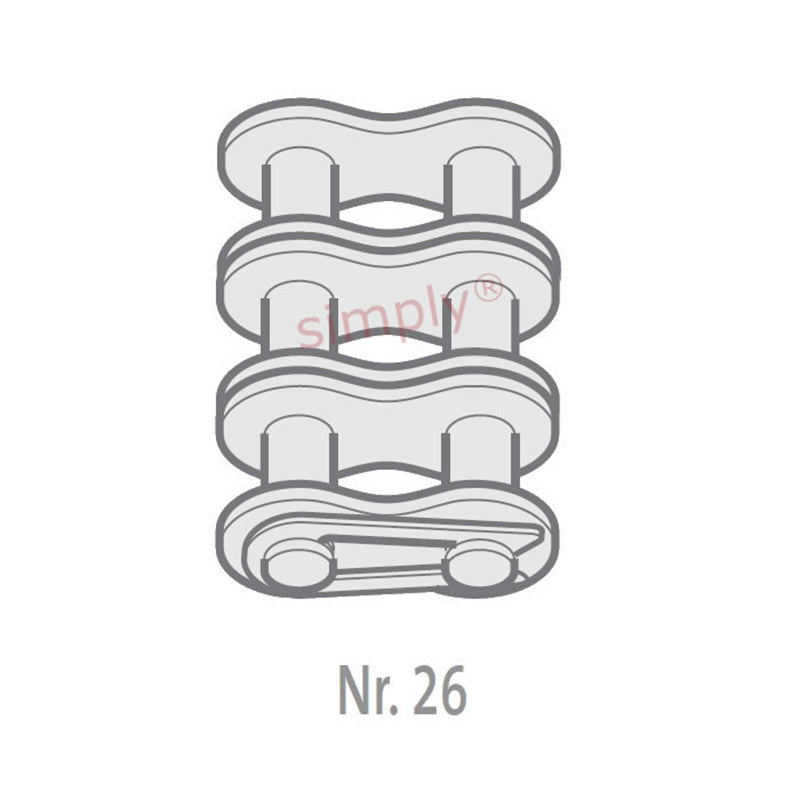

Branded CL / No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.7mm |
| Plate Width Inner max (E) | 1.65mm |
| Plate Width Outer max (F) | 1.65mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H3) | 53.2mm |
| Connecting Link Extension max (J) | 4.2mm |
| ISO606 Tensile Strength min | 66650 N |
| Weight | 0.014kg/m |
