SKU: 10B-3-NO30-MB
Branded 10B-3-NO30 BS Triplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- $11.09 ex VAT
- Sale price
- $11.09
- Regular price
-
In stock
Quantity Price Breaks
2
$9.87
5
$9.32
10
$9.20
29
$9.09
49
$8.98
75
$8.87
100
$8.32
200
$8.21
250
$8.10
500
$7.98
1000
$7.76
SKU:
10B-3-NO30-MB
Branded 10B-3-NO30 BS Triplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- $11.09 ex VAT
- Sale price
- $11.09
- Regular price
-
Description

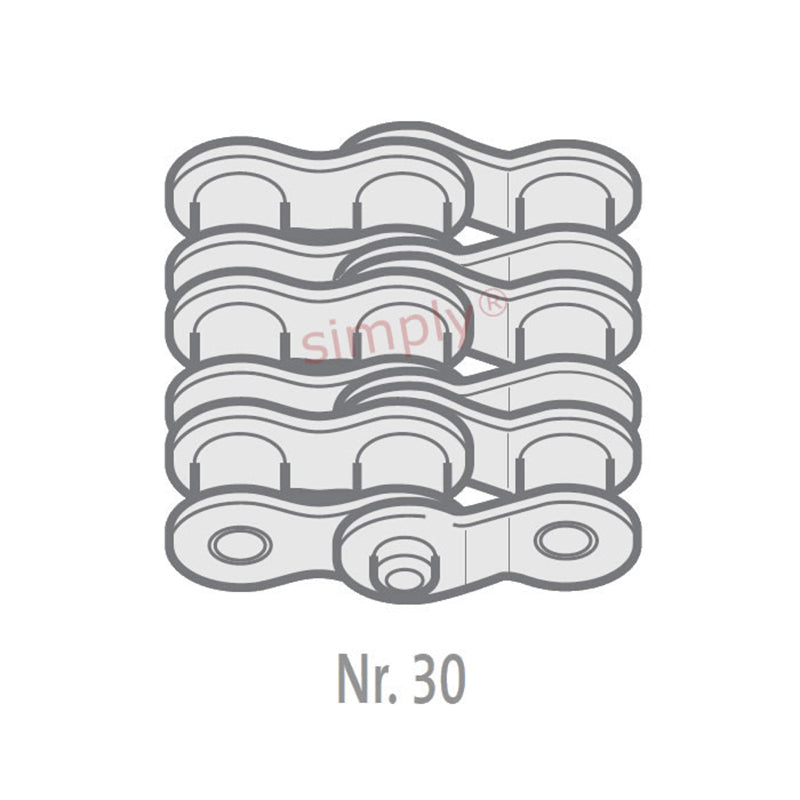

Branded DOL / No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.7mm |
| Plate Width Inner max (E) | = | 1.65mm |
| Plate Width Outer max (F) | = | 1.65mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H3) | = | 53.2mm |
| Connecting Link Extension max (J) | = | 4.2mm |
| ISO606 Tensile Strength min | = | 66650 N |
| Weight | = | 0.014kg/m |
