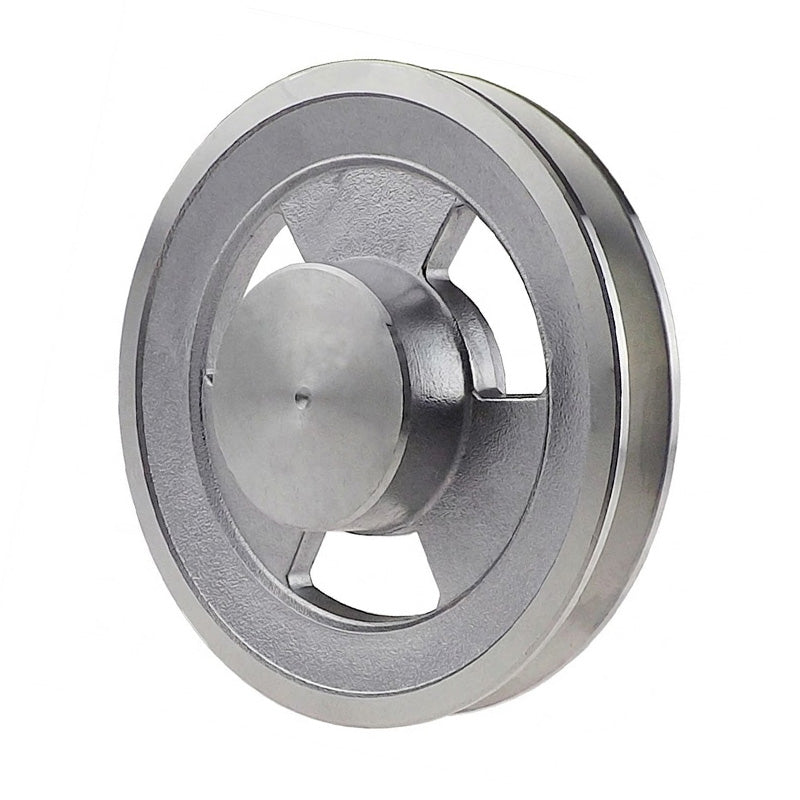

SPZ Section Un-Bored Aluminium Pulley with 1 Groove 110mm Pitch Diameter

SKU: 110ASPZ1-ALUM

SPZ Section Un-Bored Aluminium Pulley with 1 Groove 110mm Pitch Diameter

$29.81 ex VAT
$29.81
ex VAT
Not in stock

Quantity Price Breaks

3 $26.53
5 $25.04
9 $24.74
19 $24.44
49 $24.15
74 $23.85
99 $22.36
199 $22.06
249 $21.76
499 $21.46
999 $20.87
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SPZ Section Un-Bored Aluminium Pulley with 1 Groove 110mm Pitch Diameter
SKU: 110ASPZ1-ALUM

SPZ Section Un-Bored Aluminium Pulley with 1 Groove 110mm Pitch Diameter

$29.81 ex VAT
$29.81
ex VAT

Description

SPZ Section Aluminium Pulley Un-Bored: Powerdrive aluminium pulleys are used with v-belts, they are designed with a drill-able centre, pre-marked with a centre point enabling the user to create a precise custom bore to suit individual needs. Manufactured from high quality aluminium, Powerdrive pulleys are lightweight while being hard-wearing and incredibly reliable. Powerdrive aluminium pulleys are perfectly suited for applications such as air compressors generators or printing machinery.
Benefits: Powerdrive aluminium pulleys are available with pitch circle diameters (PCD) ranging from 50mm - 300mm and are made using 356.1 aluminium alloy.

Technical

Number of Grooves = 1
Outer Diameter = 115mm
Pitch = 110mm
Hub Diameter = 50mm
Hub Width = 26mm
Weight = 0.265kg
