SKU: 112041X/112085H-GAMET

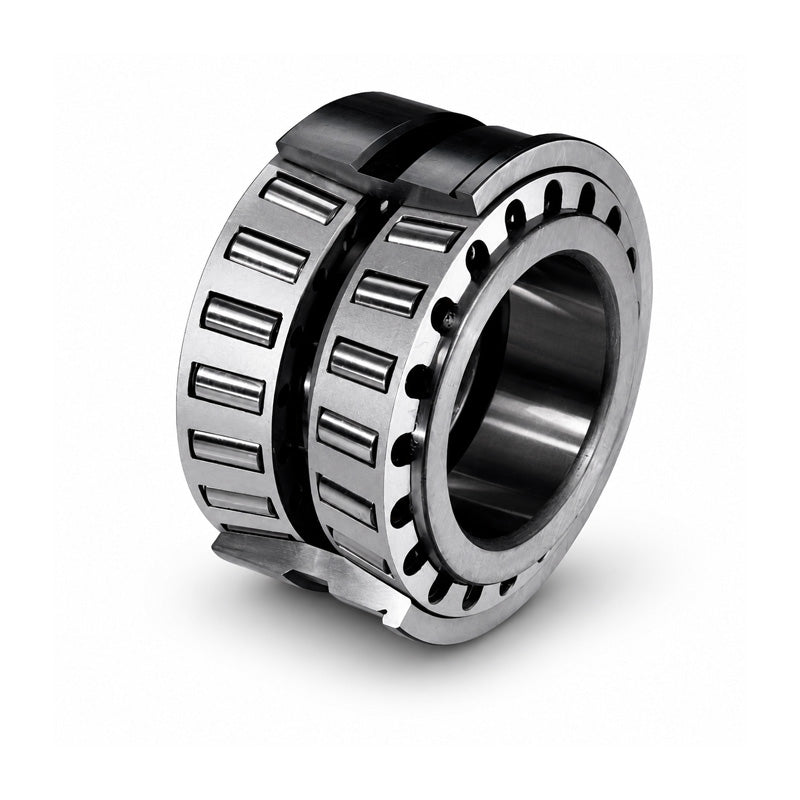

Gamet 112041X/112085H Super Precision Double Row Tapered Roller Bearing Flanged Cup Type 41.275x85x55mm - Allow 7-10 Days
Gamet 112041X/112085H Super Precision Double Row Tapered Roller Bearing Flanged Cup Type 41.275x85x55mm - Allow 7-10 Days
Out of stock
Description
Description
|
Super Precision Double Row Tapered Roller Bearing Flanged Cup Type: Designed and manufactured in the UK by one of the worlds leading Precision Bearings companies. Double row bearings offer nearly twice the capacity of the equivalent single row bearing, and are therefore used in more heavily loaded applications. This double row bearing has a flanged outer ring which locates the shaft axially. This can also simplify housing machining operations and overall design. Benefits: Suitable in heavily loaded applications, high quality bearing materials. Note: The bore of the rearcone (marked 'B' track) is 0.002 to 0.004mm larger than the 'A' track cone bore. This reduces the level of tight fit to facilitate adjustment of the bearing. |
- Brand / Quality:
- Gamet - High Quality
- Inside Diameter:
- 41.275mm
- Outside Diameter:
- 85mm
- Width:
- 55mm
Technical
Technical
| d | 41.275mm |
|---|---|
| D | 85.000mm |
| T | 55.00mm |
| C | 48.66mm |
| E | 19.57mm |
| F | 3.17mm |
| G | 7.93mm |
| H | 4.76mm |
| J | 89.76mm |
| da | 55mm |
| L | 6mm |
| R | 2.00mm |
| Radial static stiffness | 88 daN/µ |
| Axial static stiffness | 7 daN/µ |
| Radial basic rating | 2190 daN |
| Axial basic rating | 600 daN |
| Max speed | 8200 rpm |
| Weight | 1.110kg |
| Cone | 112041X |
| Cup | 112085H |
