SKU: 11206TN9-EU

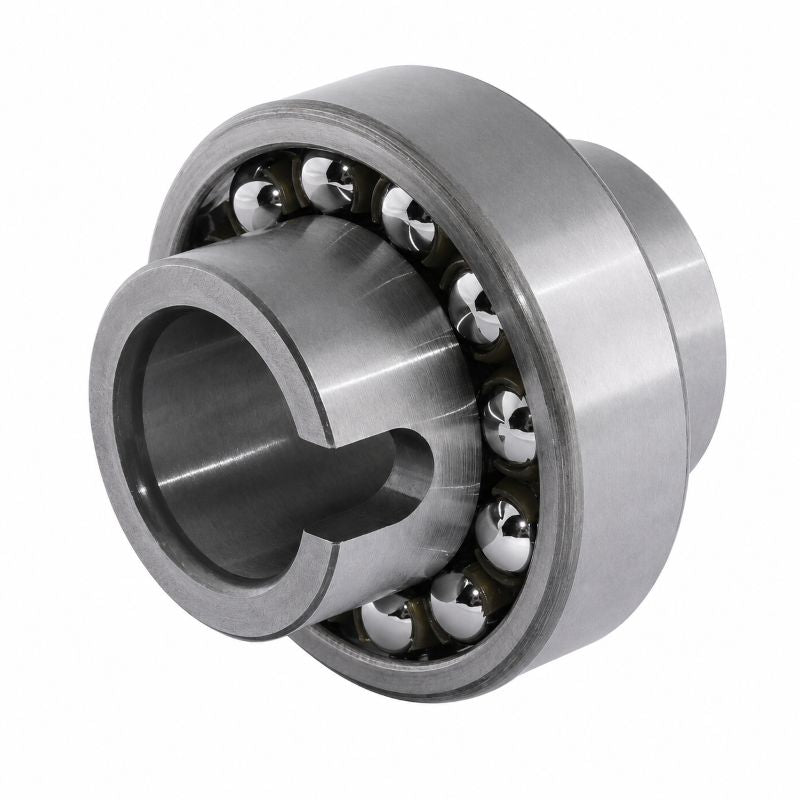

11206TN9 Budget Open Self Aligning Ball Bearing with Extended Inner Ring 30x62x16mm

Name: 11206TN9 Budget Open Self Aligning Ball Bearing with Extended Inner Ring 30x62x16mm
Brand: Gen
SKU: 11206TN9-EU
Price: 32.71 USD
Availability: InStock

$32.71 ex VAT

Sale Sold out

In stock

Price Break

10+ $21.91

19+ $20.68

29+ $20.44

39+ $20.19

49+ $19.94

74+ $19.70

99+ $18.47

199+ $18.22

249+ $17.97

499+ $17.73

999+ $17.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 30mm
Outside Diameter:: 62mm
Width:: 16mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	30mm
D	62mm
B	48mm
C	16mm
Dynamic load C	15.6 kN
Static load Co	4.65 kN
Fatigue load limit Pu	0.24 kN
Limiting speed	6700 rpm
Weight	0.35 kg
d2	40.1mm
D1	53.2mm
r1r2 min	1mm
Da max	56.4mm
ra max	1mm
Calculation factor e	0.25
Calculation factor Y0	2.5
Calculation factor Y1	2.5
Calculation factor Y2	3.9
