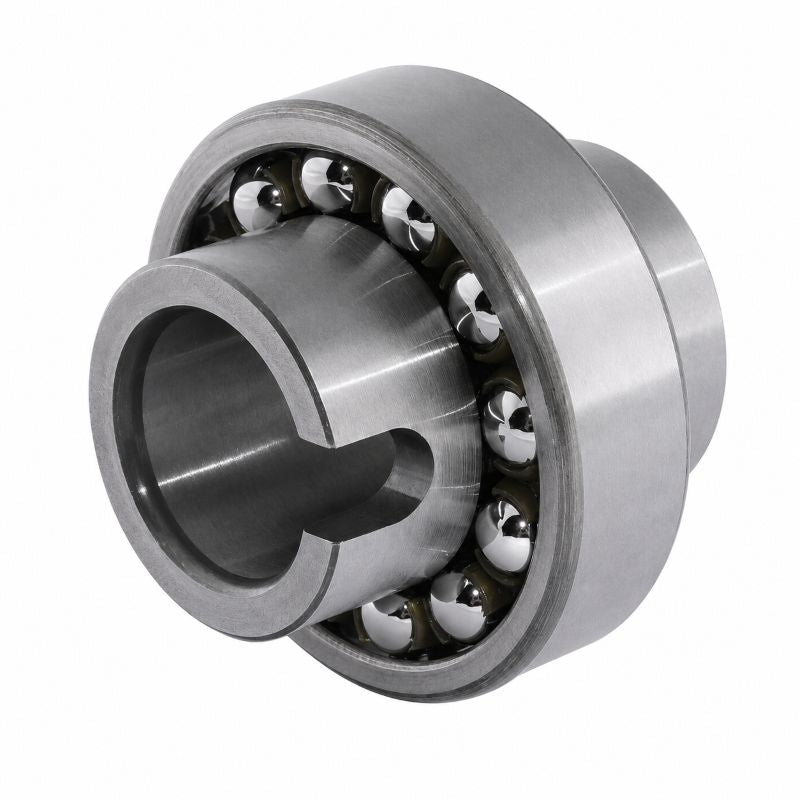

• 11207TN9 Budget Open Self Aligning Ball Bearing with Extended Inner Ring 35x72x17mm
1 1

SKU: 11207TN9-EU

11207TN9 Budget Open Self Aligning Ball Bearing with Extended Inner Ring 35x72x17mm

11207TN9 Budget Open Self Aligning Ball Bearing with Extended Inner Ring 35x72x17mm
$37.79 ex VAT
$37.79 ex VAT
Sale Sold out

In stock

Price Break
10+ $25.31
19+ $23.89
29+ $23.60
39+ $23.32
49+ $23.03
74+ $22.75
99+ $21.33
199+ $21.04
249+ $20.76
499+ $20.47
999+ $19.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
35mm
Outside Diameter:
72mm
Width:
17mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 35mm
D 72mm
B 52mm
C 17mm
Dynamic load C 15.9 kN
Static load Co 5.1 kN
Fatigue load limit Pu 0.27 kN
Limiting speed 5600 rpm
Weight 0.54 kg
d2 47.7mm
D1 60.7mm
r1r2 min 1.1mm
Da max 65mm
ra max 1mm
Calculation factor e 0.23
Calculation factor Y0 2.8
Calculation factor Y1 2.7
Calculation factor Y2 4.2
