SKU: 11208TN9-EU

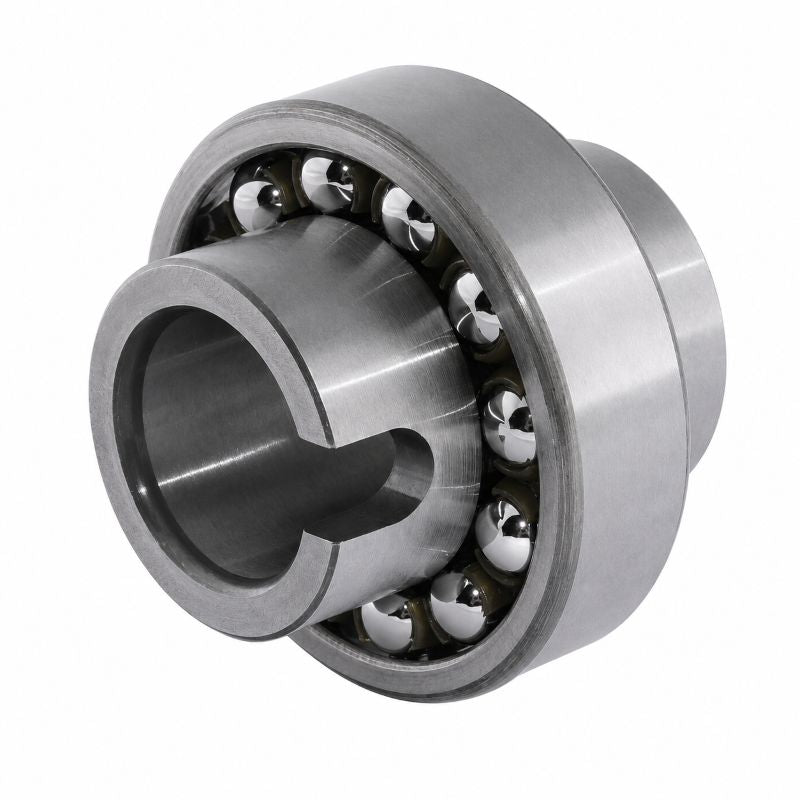

11208TN9 Budget Open Self Aligning Ball Bearing with Extended Inner Ring 40x80x18mm

Name: 11208TN9 Budget Open Self Aligning Ball Bearing with Extended Inner Ring 40x80x18mm
Brand: Gen
SKU: 11208TN9-EU
Price: 40.15 USD
Availability: InStock

$40.15 ex VAT

Sale Sold out

In stock

Price Break

10+ $26.90

19+ $25.39

29+ $25.09

39+ $24.78

49+ $24.48

74+ $24.18

99+ $22.67

199+ $22.37

249+ $22.06

499+ $21.76

999+ $21.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 40mm
Outside Diameter:: 80mm
Width:: 18mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	40mm
D	80mm
B	56mm
C	18mm
Dynamic load C	19 kN
Static load Co	6.55 kN
Fatigue load limit Pu	0.34 kN
Limiting speed	5000 rpm
Weight	0.72 kg
d2	54mm
D1	68.8mm
r1r2 min	1.1mm
Da max	73mm
ra max	1mm
Calculation factor e	0.22
Calculation factor Y0	2.8
Calculation factor Y1	2.9
Calculation factor Y2	4.5
