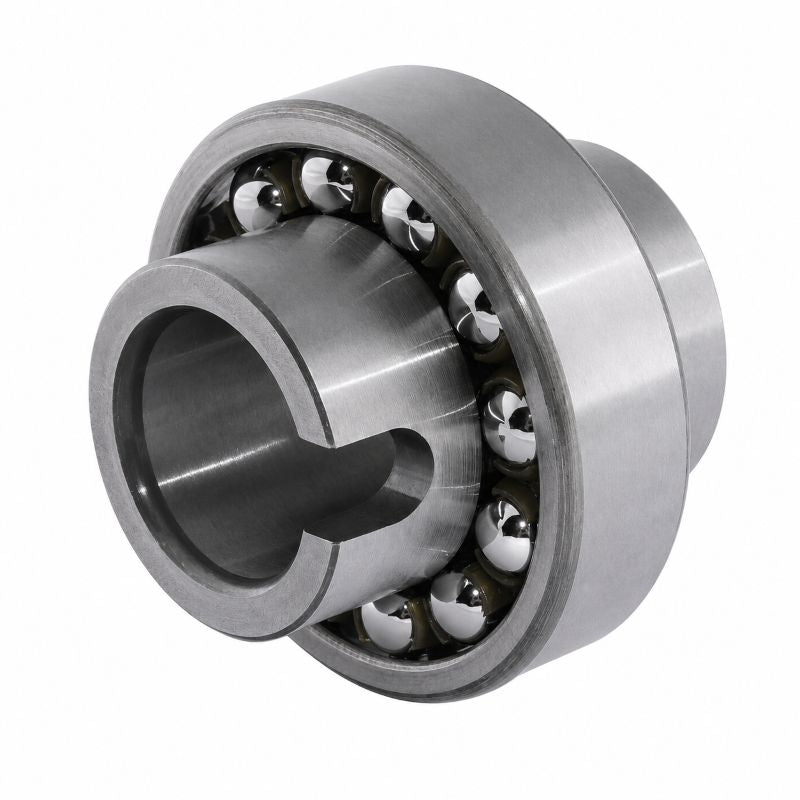

• SKF 11210TN9 Open Self Aligning Ball Bearing with Extended Inner Ring 50x90x20mm
1 1

SKU: 11210TN9-SKF

SKF 11210TN9 Open Self Aligning Ball Bearing with Extended Inner Ring 50x90x20mm

SKF 11210TN9 Open Self Aligning Ball Bearing with Extended Inner Ring 50x90x20mm
$164.52 ex VAT
$164.52 ex VAT
Sale Sold out

In stock

Price Break
10+ $110.20
19+ $104.01
29+ $102.77
39+ $101.54
49+ $100.30
74+ $99.06
99+ $92.87
199+ $91.63
249+ $90.39
499+ $89.15
999+ $86.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Self Aligning Ball Bearings with Extended Inner Race: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds. They have an extended inner race to facilitate location to keyways etc.
Benefits: Tolerates misalignment, cool running, self centering
Brand / Quality:
SKF - High Quality
Inside Diameter:
50mm
Outside Diameter:
90mm
Width:
20mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 50mm
D 90mm
B 58mm
C 20mm
Dynamic load C 22.9 kN
Static load Co 8.15 kN
Fatigue load limit Pu 0.42 kN
Limiting speed 4300 rpm
Weight 0.85 kg
d2 62.7mm
D1 78.7mm
r1r2 min 1.1mm
Da max 83mm
ra max 1mm
Calculation factor e 0.21
Calculation factor Y0 3.2
Calculation factor Y1 3
Calculation factor Y2 4.6
