• RHP 1135-1-7/16CG Full Width Snap Ring Grub Screw Bearing Insert 1-7/16 inch Bore 72mm Outside Diameter
1 1

SKU: 1135-1.7/16CG-RHP

RHP 1135-1-7/16CG Full Width Snap Ring Grub Screw Bearing Insert 1-7/16 inch Bore 72mm Outside Diameter

RHP 1135-1-7/16CG Full Width Snap Ring Grub Screw Bearing Insert 1-7/16 inch Bore 72mm Outside Diameter
$51.26 ex VAT
$51.26 ex VAT
Sale Sold out

In stock

Price Break
10+ $34.34
20+ $32.41
30+ $32.02
40+ $31.63
50+ $31.25
75+ $30.86
100+ $28.93
200+ $28.55
250+ $28.16
500+ $27.78
1000+ $27.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

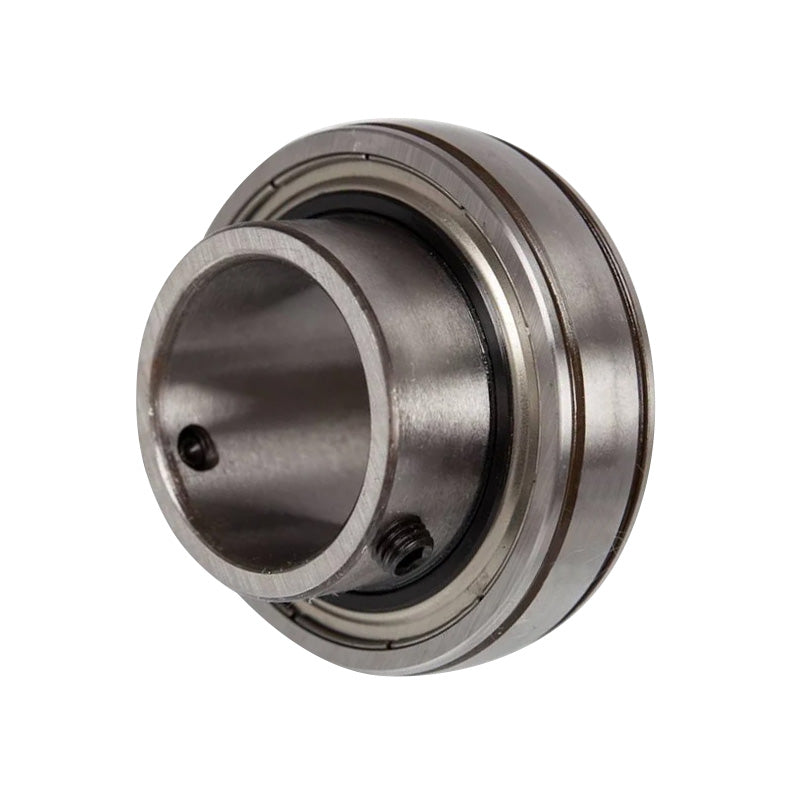

RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Outside Diameter:
72mm
Style:
1135
Technical
Bore 1-7/16 inch
D 2.8346mm
D1 3.091mm
C 0.937mm
C1 0.125mm
C2 0.221mm
B 1.688mm
s 0.69mm
d1 1.838mm
f 0.67mm
M 0.289mm
r 0.039mm
r1 0.039mm
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 0.61 kg
