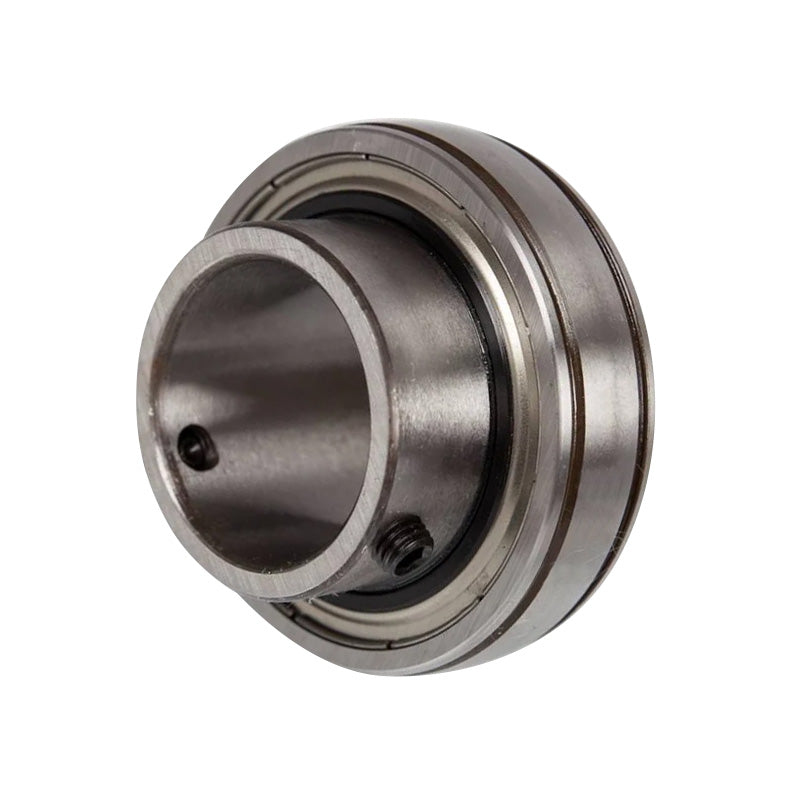

• RHP 1135-30 Parallel Outer Full Width Bearing Insert 30mm Bore 72mm Outside Diameter
1 1

SKU: 1135-30-RHP

RHP 1135-30 Parallel Outer Full Width Bearing Insert 30mm Bore 72mm Outside Diameter

RHP 1135-30 Parallel Outer Full Width Bearing Insert 30mm Bore 72mm Outside Diameter
$43.91 ex VAT
$43.91 ex VAT
Sale Sold out

In stock

Price Break
10+ $29.41
20+ $27.76
30+ $27.43
40+ $27.10
50+ $26.77
75+ $26.44
100+ $24.78
200+ $24.45
250+ $24.12
500+ $23.79
1000+ $23.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1100 Series: Full width bearing insert with parallel outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Outside Diameter:
72mm
Style:
1135
Technical
Bore 30mm
D 72mm
C 17mm
B 42.88mm
s 17.53mm
d1 46.69mm
M 7.35mm
r 1mm
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 0.51 kg
