SKU: 1140-1.7/16-RHP

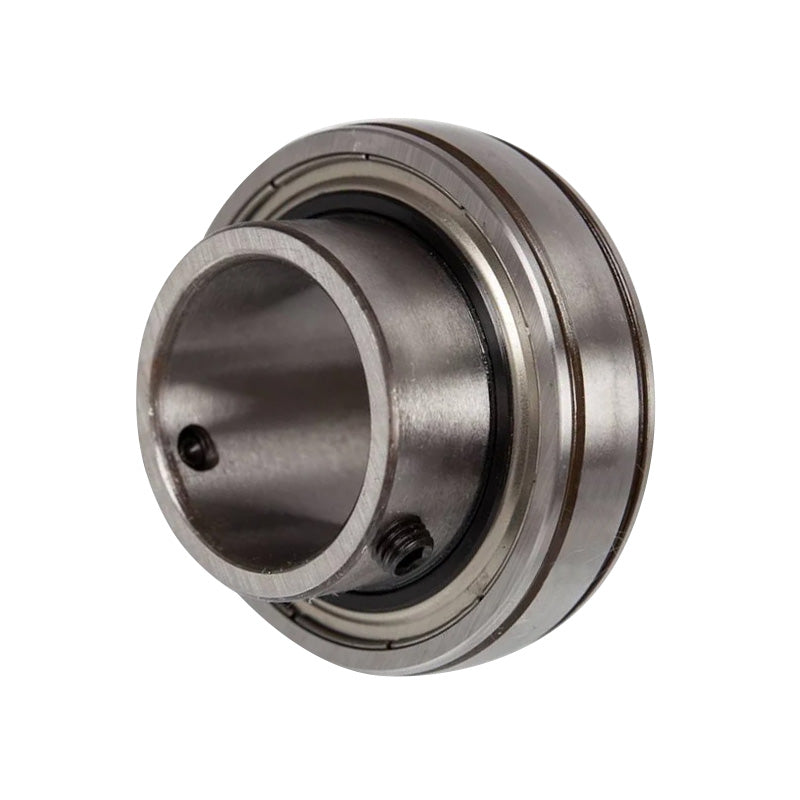

RHP 1140-1-7/16 Parallel Outer Full Width Bearing Insert 1-7/16 inch Bore 80mm Outside Diameter
RHP 1140-1-7/16 Parallel Outer Full Width Bearing Insert 1-7/16 inch Bore 80mm Outside Diameter
Out of stock
Description
Description
|
RHP 1100 Series: Full width bearing insert with parallel outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 80mm
- Style:
- 1140
Technical
Technical
| Bore | 1-7/16 inch |
|---|---|
| D | 3.1496 inch |
| C | 0.709 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.075 inch |
| M | 0.313 inch |
| r | 0.039 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 0.64 kg |
