Description

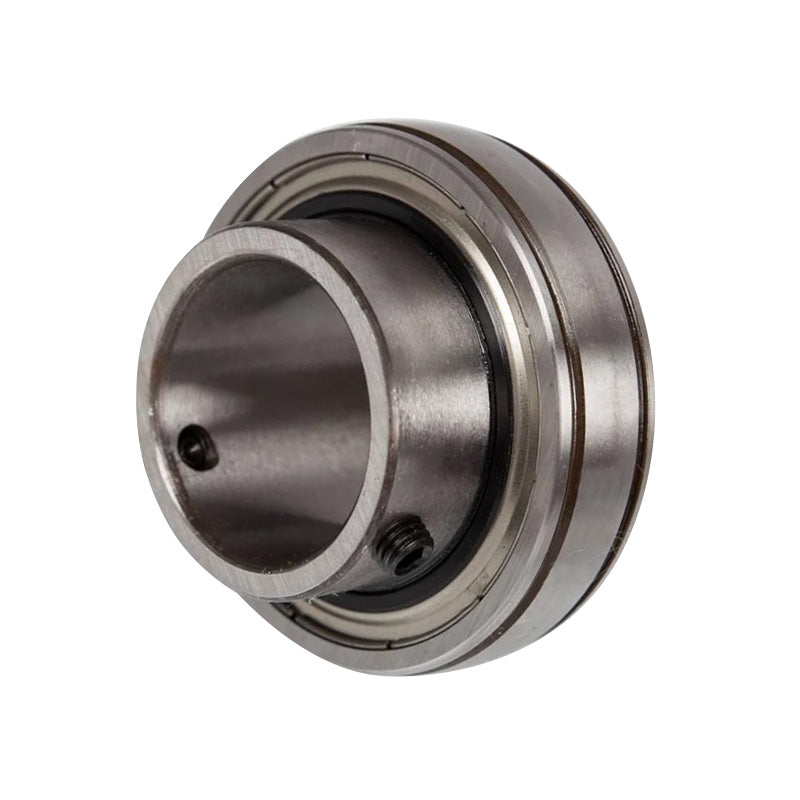

RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
42.86mm = 1.687 (1-11/16) inch
Outside Diameter:
85mm
Style:
1145
Technical
Bore 1-11/16 inch
D 3.3465mm
D1 3.603mm
C 1.094mm
C1 0.125mm
C2 0.257mm
B 1.938mm
s 0.752mm
d1 2.256mm
f 0.67mm
M 0.313mm
r 0.039mm
r1 0.039mm
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 1.05 kg
