SKU: 12.5SS316-JUB

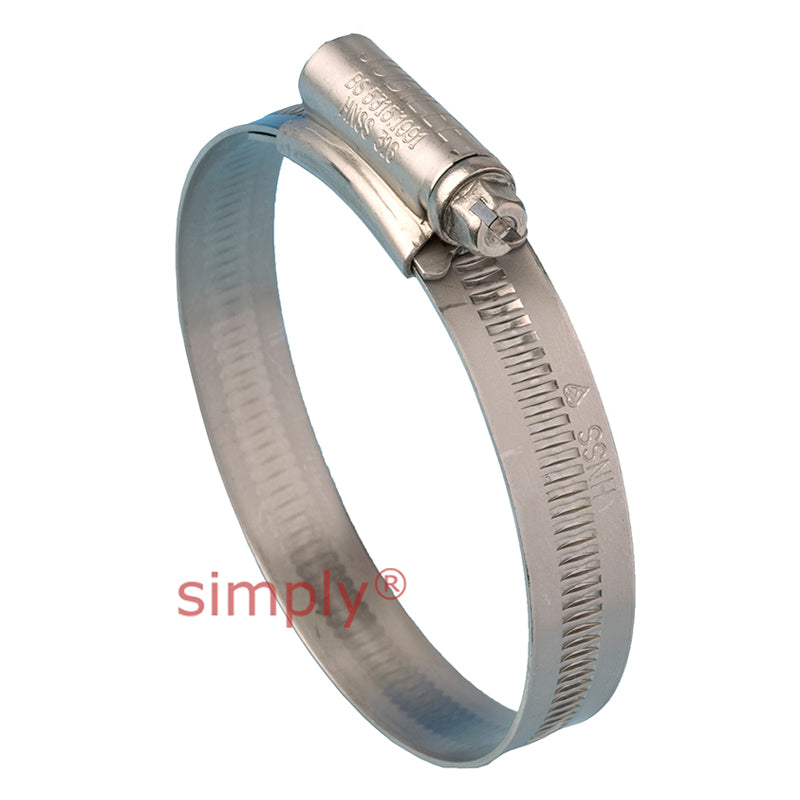

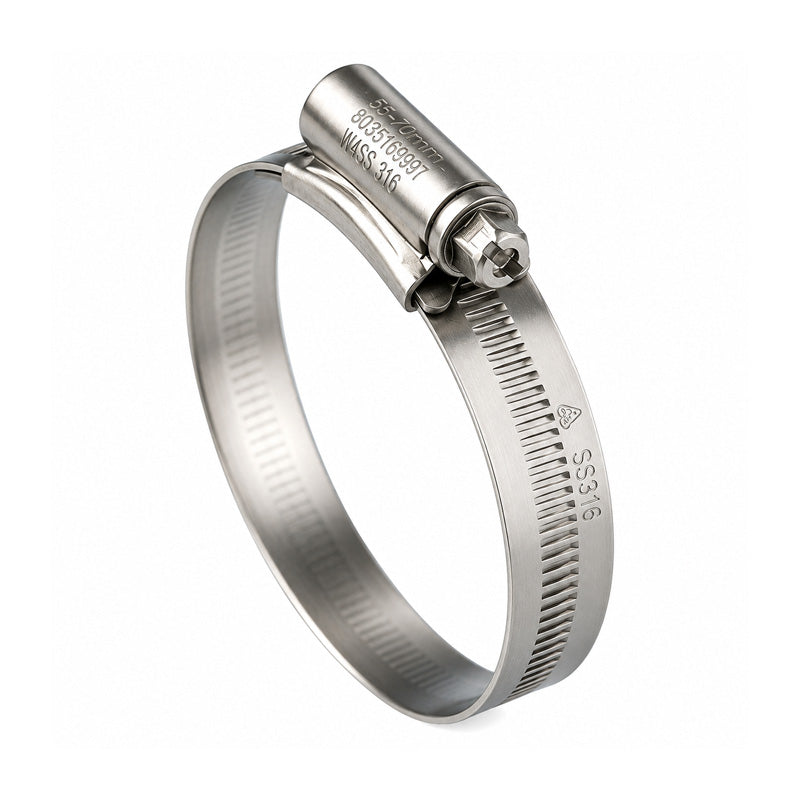

12.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 286mm - 318mm Band Width 13mm
- Regular price
- $15.46 ex VAT
- Sale price
- $15.46
- Regular price
-
Not in stock
Quantity Price Breaks
3
$13.76
5
$12.99
9
$12.83
19
$12.68
49
$12.52
74
$12.37
99
$11.60
199
$11.44
249
$11.29
499
$11.13
999
$10.82
SKU:
12.5SS316-JUB
12.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 286mm - 318mm Band Width 13mm
- Regular price
- $15.46 ex VAT
- Sale price
- $15.46
- Regular price
-
Description
316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.
Technical
| BS No. | = | 318 |
| Adjustment Range | = | 286mm - 318mm |
| Adjustment Range | = | 11-1/4 - 12-1/2 inch |
| Band Width (+/- 0.1) | = | 13mm |
| Band Thickness (+/- 0.1) | = | 0.914mm |
| Recommended Torque | = | 5.9Nm |
| Maximum Torque | = | 7.9Nm |
| Maximum Pressure | = | 18 Psi |
