• Renold Blue Box 120-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1-1/2 inch Pitch
  • Renold
1 2

SKU: 120-1-BB-NO11-RENOLD

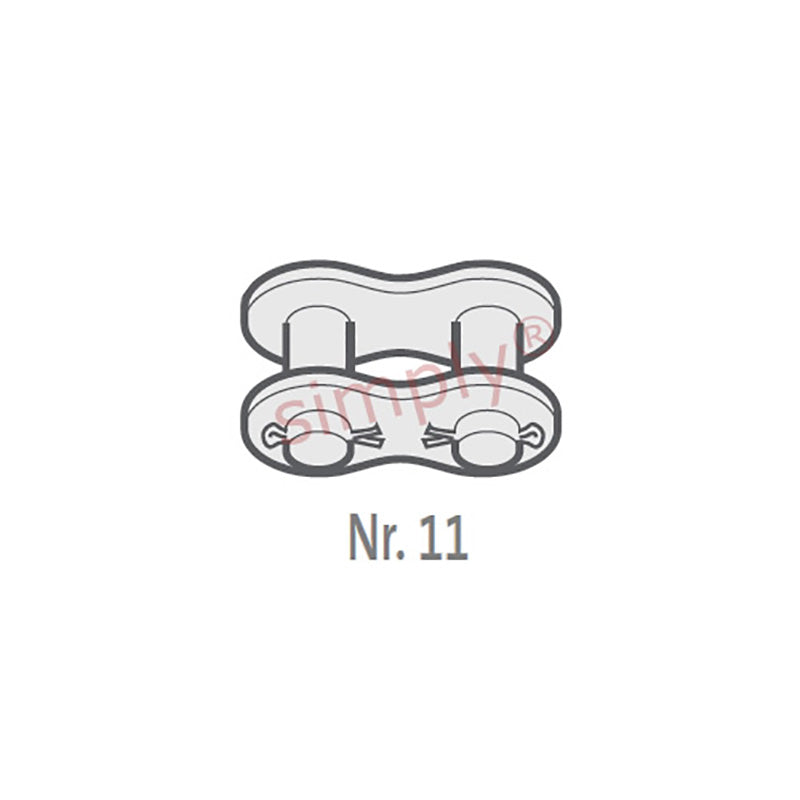

Renold Blue Box 120-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1-1/2 inch Pitch

Renold Blue Box 120-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1-1/2 inch Pitch
$65.16 ex VAT
$65.16 ex VAT
Sale Sold out

In stock

Price Break
2+ $43.65
5+ $41.20
10+ $40.71
29+ $40.22
49+ $39.73
75+ $39.23
100+ $36.78
200+ $36.29
250+ $35.80
500+ $35.31
1000+ $34.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
38.1mm = 1.5 (1-1/2) inch
Technical
Pitch (A) 1.5 inch
Pitch (A) 38.1mm
Inside Width min (B) 25.23mm
Roller Diameter max (C) 22.23mm
Plate Height max (D) 36.2mm
Plate Width Inner max (E) 4.8mm
Plate Width Outer max (F) 4.8mm
Pin Diameter max (G) 11.11mm
Pin Length max (H2) 49.3mm
Connecting Link Extension max (J) 5.3mm
ISO606 Tensile Strength min 125000 N
Weight 0.079kg/m
