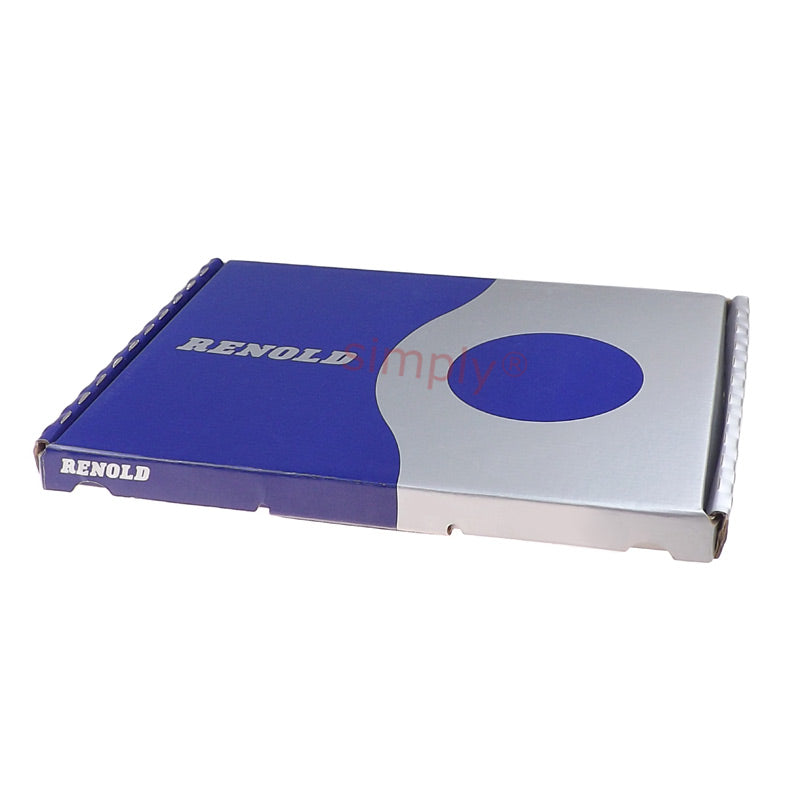

• Renold Blue Box 120-2 ANSI / AS Duplex Roller Chain 1-1/2 inch Pitch - 10 Feet Length
  • Renold
1 2

SKU: 120-2-BB-10FT-RENOLD

Renold Blue Box 120-2 ANSI / AS Duplex Roller Chain 1-1/2 inch Pitch - 10 Feet Length

Renold Blue Box 120-2 ANSI / AS Duplex Roller Chain 1-1/2 inch Pitch - 10 Feet Length
$1,748.63 ex VAT
$1,748.63 ex VAT
Sale Sold out

Equivalent to: 120B-2

In stock

Price Break
0+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
38.1mm = 1.5 (1-1/2) inch
Technical
Pitch (A) 1.5 inch
Pitch (A) 38.1mm
Inside Width min (B) 25.23mm
Roller Diameter max (C) 22.23mm
Plate Height max (D) 36.2mm
Plate Width Inner max (E) 4.8mm
Plate Width Outer max (F) 4.8mm
Pin Diameter max (G) 11.11mm
Pin Length max (H2) 94.7mm
Connecting Link Extension max (J) 5.3mm
Transverse Pitch nom (K) 45.44mm
ISO606 Tensile Strength min 250000 N
Weight 11kg/m
