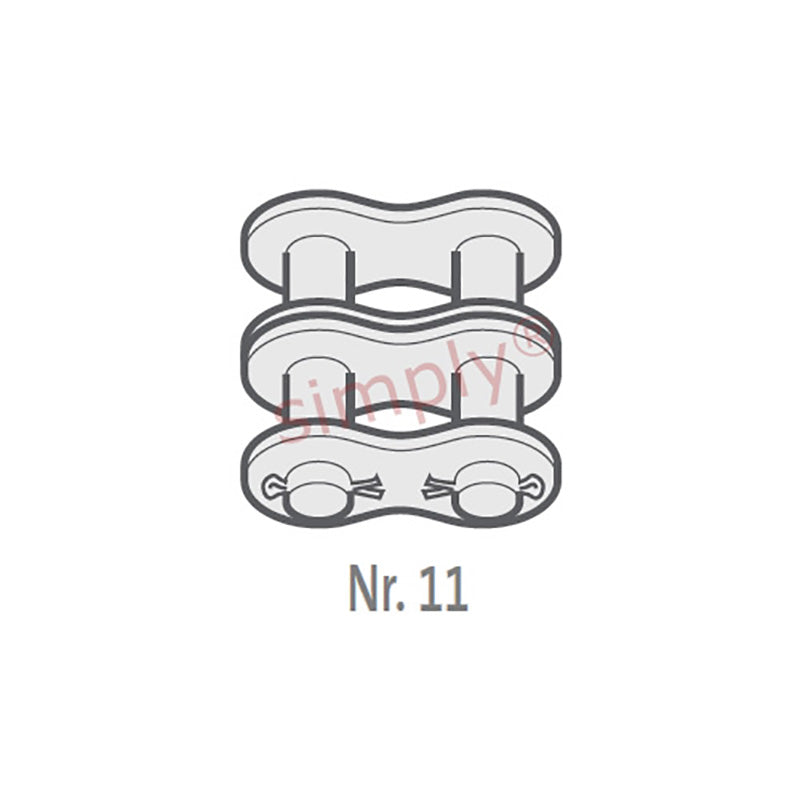

• Renold SD 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
  • Renold
1 2

SKU: 120-2-SD-NO11-RENOLD

Renold SD 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch

Renold SD 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
$60.87 ex VAT
$60.87 ex VAT
Sale Sold out

In stock

Price Break
2+ $40.77
5+ $38.48
10+ $38.03
29+ $37.57
49+ $37.11
75+ $36.65
100+ $34.36
200+ $33.90
250+ $33.44
500+ $32.99
1000+ $32.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
38.1mm = 1.5 (1-1/2) inch
Technical
Pitch (A) 1.5 inch
Pitch (A) 38.1mm
Inside Width min (B) 25.22mm
Roller Diameter max (C) 22.23mm
Plate Height max (D) 36.1mm
Plate Width Inner max (E) 4.7mm
Plate Width Outer max (F) 4.7mm
Pin Diameter max (G) 11.1mm
Pin Length max (H2) 95.4mm
Connecting Link Extension max (J) 4.3mm
Transverse Pitch nom (K) 45.44mm
ISO606 Tensile Strength min 250000 N
Weight 0.156kg/m
