• Renold Synergy 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
  • Renold
1 2

SKU: 120-2-SYN-NO11-RENOLD

Renold Synergy 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch

Renold Synergy 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
$302.36 ex VAT
$302.36 ex VAT
Sale Sold out

In stock

Price Break
2+ $202.53
5+ $191.15
10+ $188.88
29+ $186.60
49+ $184.32
75+ $182.05
100+ $170.67
200+ $168.39
250+ $166.12
500+ $163.84
1000+ $159.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

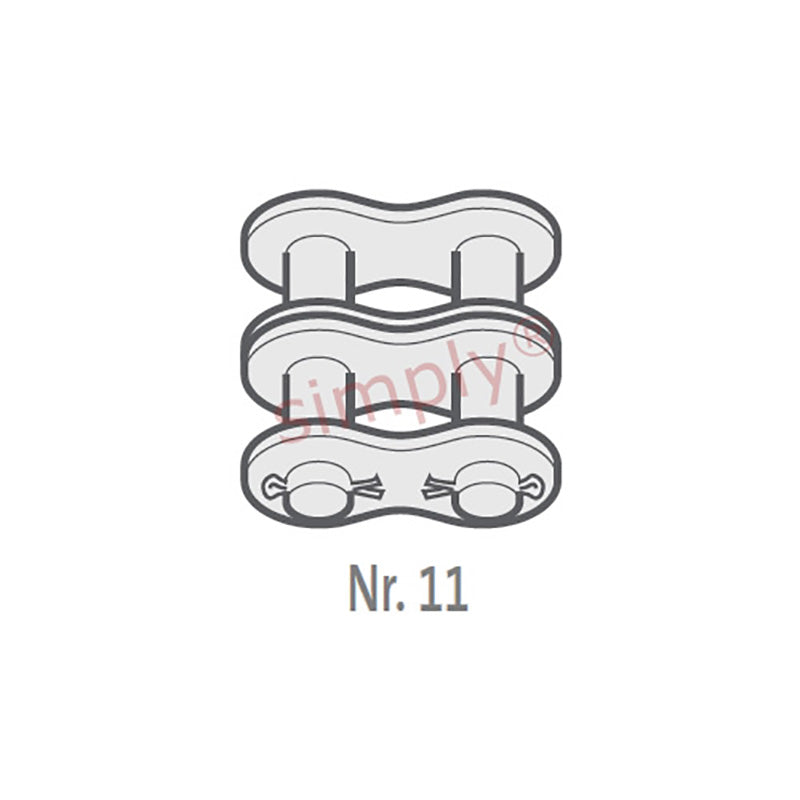

Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Brand / Quality:
Renold - High Quality
Pitch:
38.1mm = 1.5 (1-1/2) inch
Technical
Pitch (A) 1.5 inch
Pitch (A) 38.1mm
Inside Width min (B) 25.23mm
Roller Diameter max (C) 22.23mm
Plate Height max (D) 36.2mm
Plate Width Inner max (E) 4.8mm
Plate Width Outer max (F) 4.8mm
Pin Diameter max (G) 11.11mm
Pin Length max (H2) 94.7mm
Connecting Link Extension max (J) 5.3mm
Transverse Pitch nom (K) 45.44mm
ISO606 Tensile Strength min 250000 N
Weight 0.156kg/m
