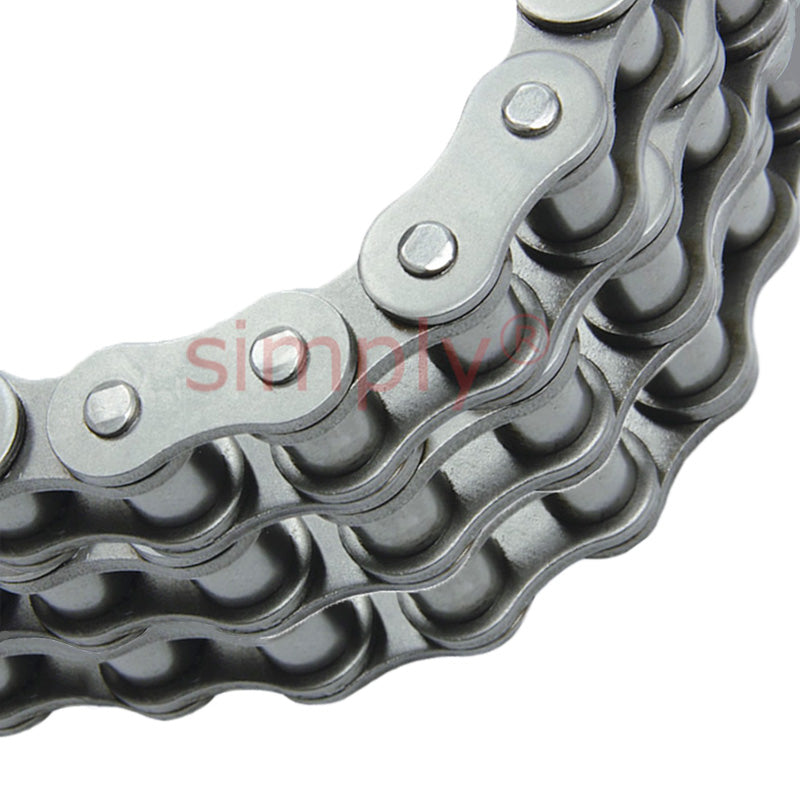

• Branded ANSI/ASA120-3 Triplex Roller Chain 1-1/2 inch Pitch 2.5 Metres
1 1

SKU: 120-3-2.5MTR-MB

Branded ANSI/ASA120-3 Triplex Roller Chain 1-1/2 inch Pitch 2.5 Metres

Branded ANSI/ASA120-3 Triplex Roller Chain 1-1/2 inch Pitch 2.5 Metres
$323.72 ex VAT
$323.72 ex VAT
Sale Sold out

In stock

Price Break
2+ $216.84
5+ $204.66
10+ $202.23
29+ $199.79
49+ $197.35
75+ $194.92
100+ $182.73
200+ $180.30
250+ $177.86
500+ $175.42
1000+ $170.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
38.1mm = 1.5 (1-1/2) inch
Technical
Pitch (P) 38.1mm = 1.5 (1-1/2) inch
Roller Diameter (D1 max) 22.23mm
Width between inner plates (B1 min) 25.22mm
Pin dia meter (D2 max) 11.1mm
Pin length (L max) 95.8mm
Pin length (Lc max) 99.7mm
Inner plate depth (H2 max) 35.7mm
Plate thickness (T max) 4.8mm
Ultimate tensile strength (Q min) kN/LB 254.00/57727
Average tensile strength (Q0) kN 314.9
Transverse pitch (Pt) mm 45.44
Weight per meter (q) kg/m 11.7
