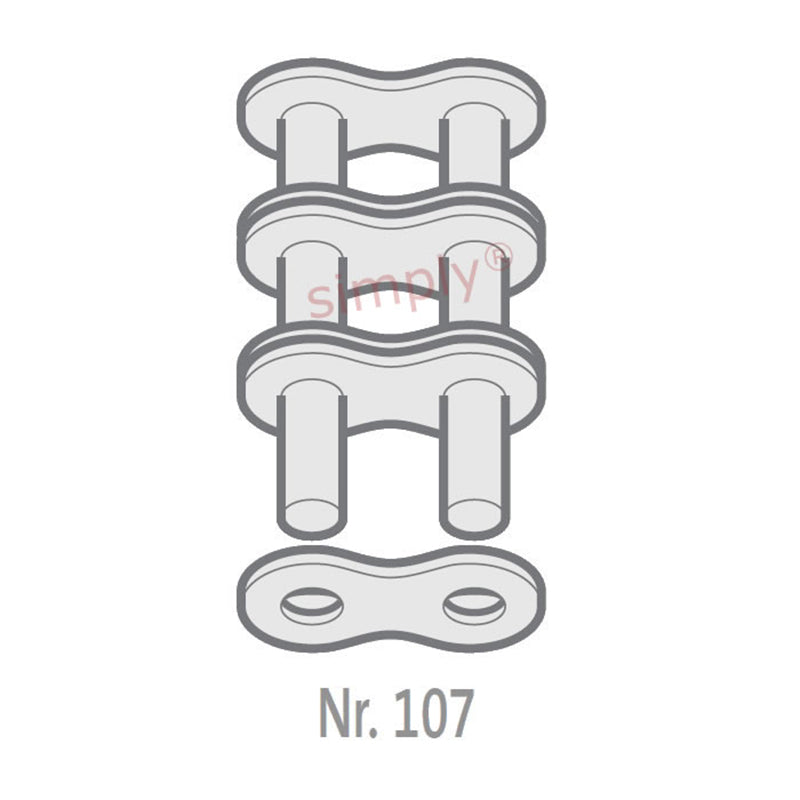

• Renold SD 120-3-NO107 ANSI / AS Triplex Chain Outer Link To Be Riveted 1-1/2 inch Pitch
  • Renold
1 2

SKU: 120-3-SD-NO107-RENOLD

Renold SD 120-3-NO107 ANSI / AS Triplex Chain Outer Link To Be Riveted 1-1/2 inch Pitch

Renold SD 120-3-NO107 ANSI / AS Triplex Chain Outer Link To Be Riveted 1-1/2 inch Pitch
$92.92 ex VAT
$92.92 ex VAT
Sale Sold out

In stock

Price Break
2+ $62.24
5+ $58.74
10+ $58.04
29+ $57.34
49+ $56.64
75+ $55.94
100+ $52.45
200+ $51.75
250+ $51.05
500+ $50.35
1000+ $48.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
38.1mm = 1.5 (1-1/2) inch
Technical
Pitch (A) 1.5 inch
Pitch (A) 38.1mm
Inside Width min (B) 25.22mm
Roller Diameter max (C) 22.23mm
Plate Height max (D) 36.1mm
Plate Width Inner max (E) 4.7mm
Plate Width Outer max (F) 4.7mm
Pin Diameter max (G) 11.1mm
Pin Length max (H1) 139.55mm
Connecting Link Extension max (J) 8.84999999999999mm
ISO606 Tensile Strength min 375000 N
Weight 45.44kg/m
