SKU: 1205K-KSM

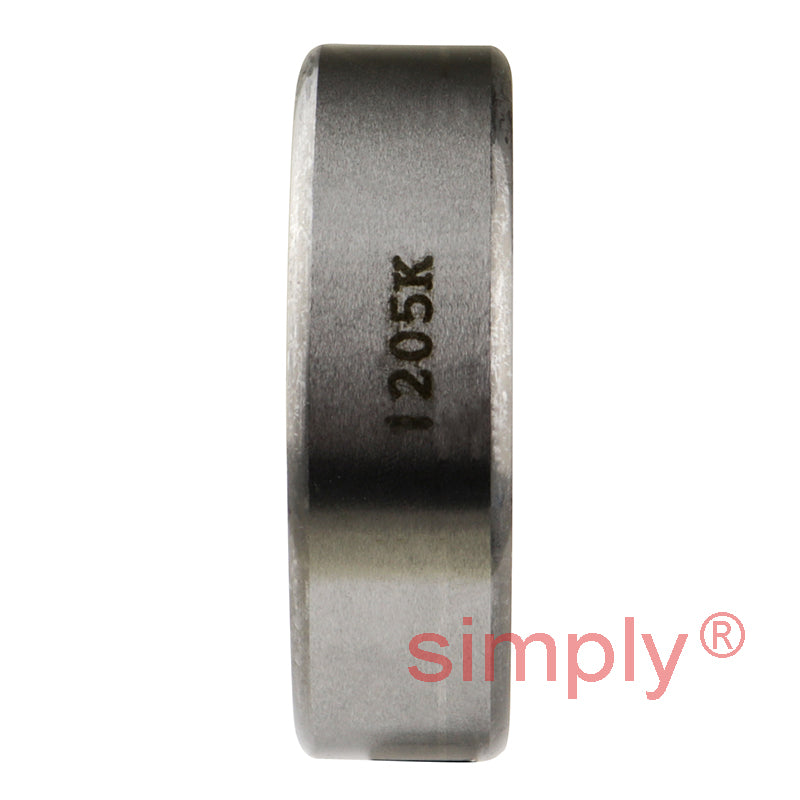

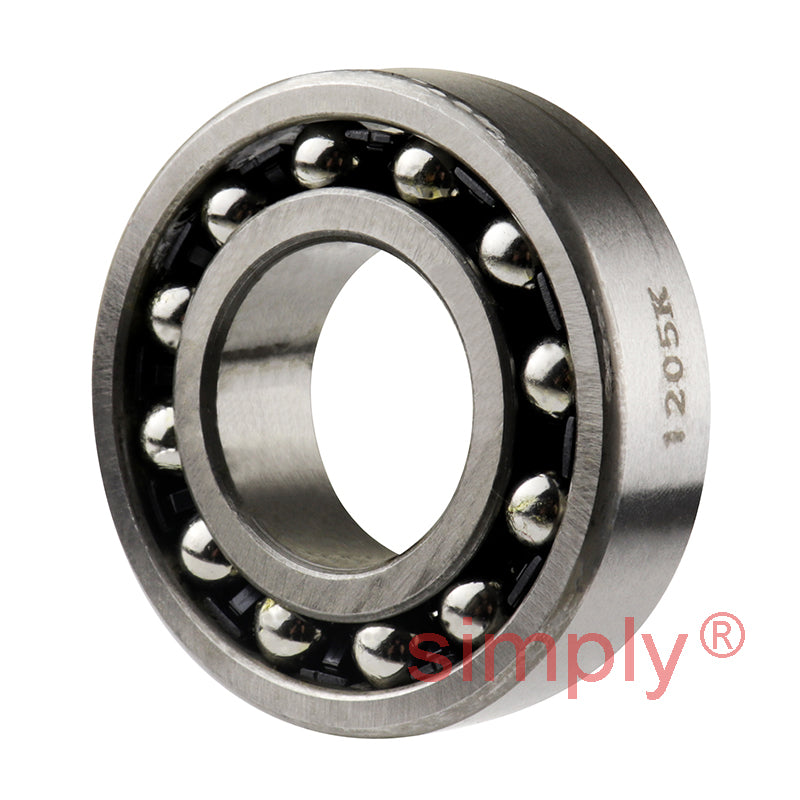

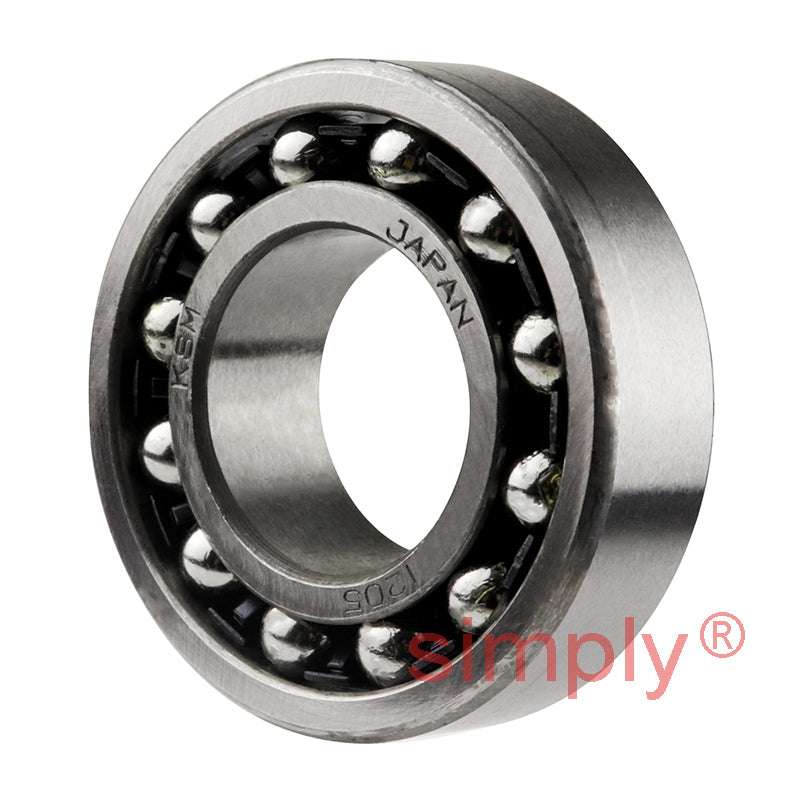

KSM 1205K Open Self Aligning Ball Bearing with Tapered Bore 25x52x15mm
KSM 1205K Open Self Aligning Ball Bearing with Tapered Bore 25x52x15mm
Regular price
$18.18
ex VAT
Regular price
Sale price
$18.18
ex VAT
Equivalent to: 1205EK 1205KTV 1205KTVH 1205KSA 1205KE 1205KE/TG
In stock
Price Break
4+
$12.17
9+
$11.49
19+
$11.35
29+
$11.21
49+
$11.08
99+
$10.94
179+
$10.26
249+
$10.12
499+
$9.98
699+
$9.85
999+
$9.57
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds |
- Brand / Quality:
- KSM - Good Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
Technical
Technical
| --- | Bearing Dimensions |
|---|---|
| d | 25mm |
| D | 52mm |
| B | 15mm |
| r1r2 min | 1mm |
| --- | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | 12100 N |
| Basic Static Load Raiting Cor | 3300 N |
| Limiting Speed in Grease | 11000 rpm |
| Limiting Speed in Oil | 13000 rpm |
| Weight | 0.138 kg |
| --- | Matching Adaptor Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H205+sleeve>H205</a> |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE205+sleeve>HE205</a> |
