SKU: 1208K-KSM

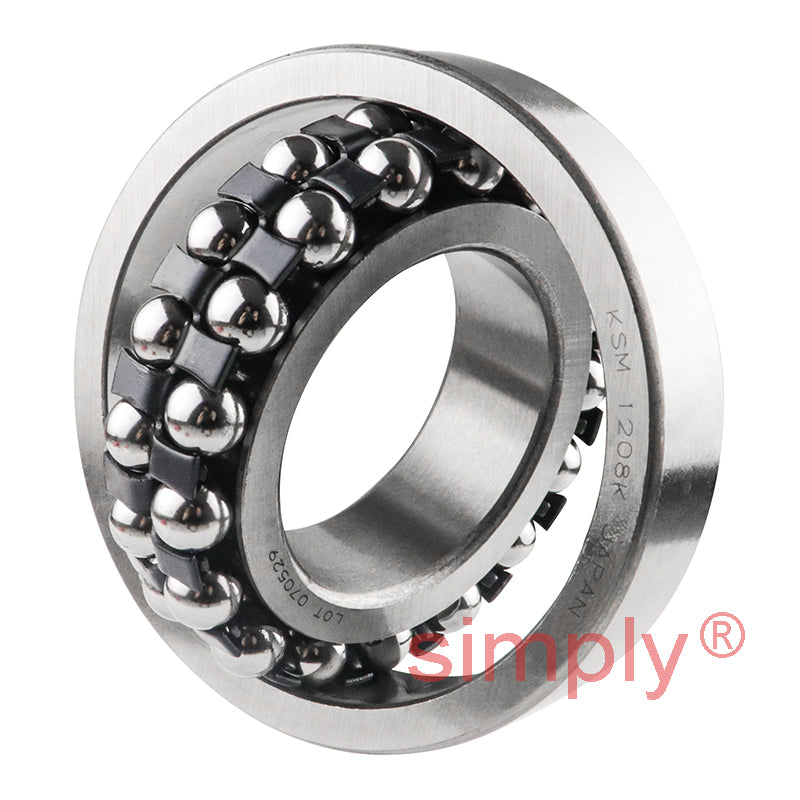

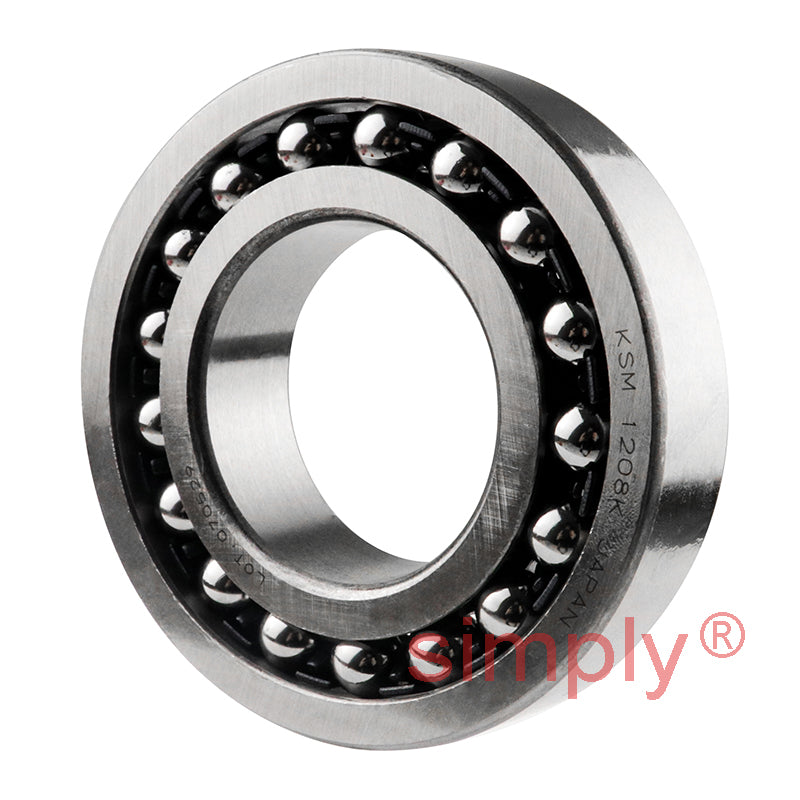

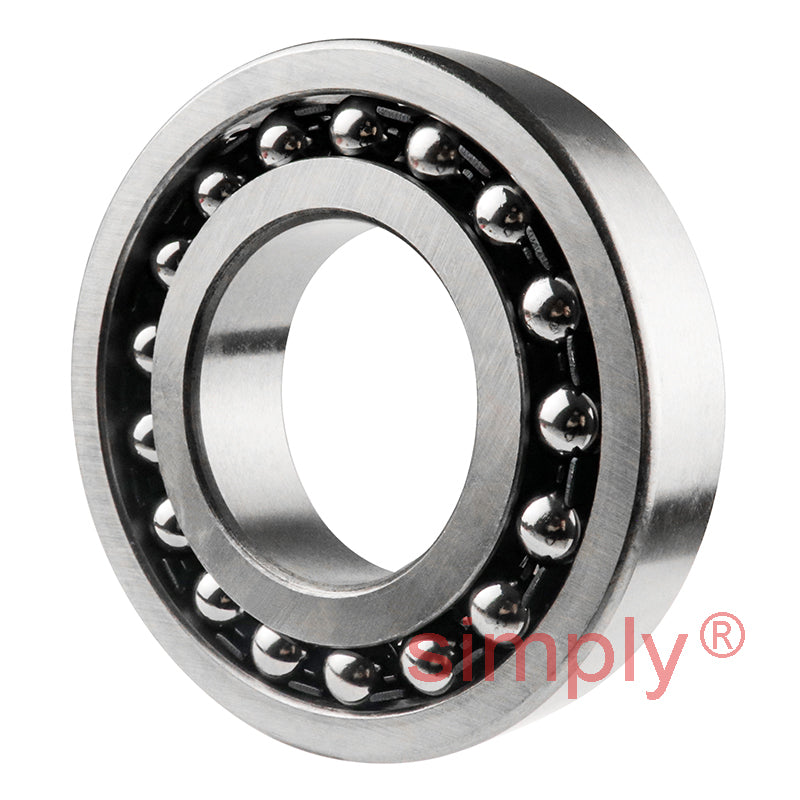

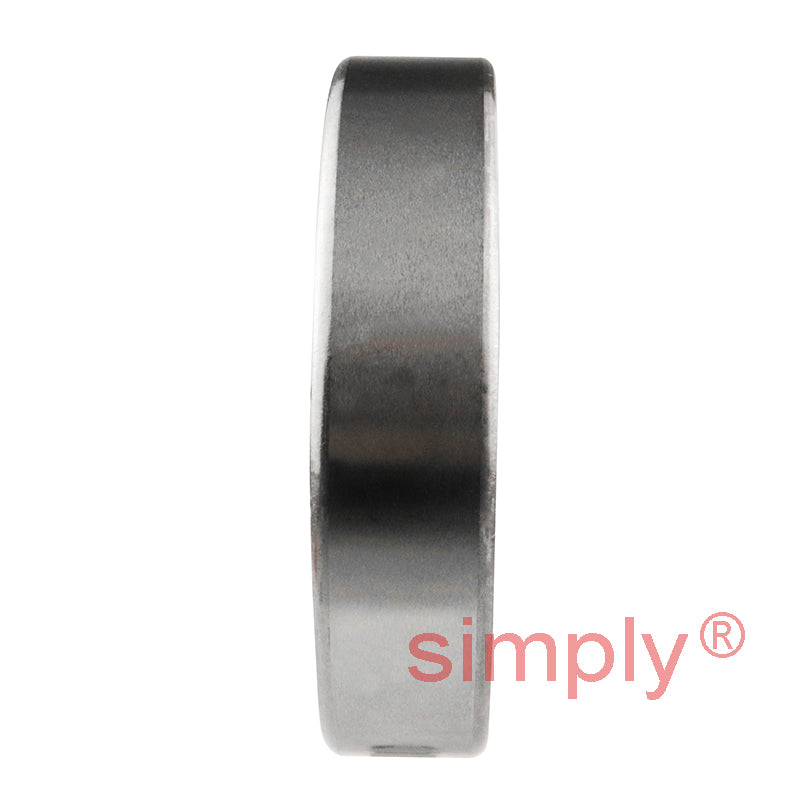

KSM 1208K Open Self Aligning Ball Bearing with Tapered Bore 40x80x18mm
KSM 1208K Open Self Aligning Ball Bearing with Tapered Bore 40x80x18mm
Regular price
$29.02
ex VAT
Regular price
Sale price
$29.02
ex VAT
Equivalent to: 1208EK 1208KTV 1208KTVH 1208KSA 1208KE 1208KE/TG
In stock
Price Break
4+
$19.44
9+
$18.35
19+
$18.13
29+
$17.91
49+
$17.69
99+
$17.47
179+
$16.38
249+
$16.16
499+
$15.95
699+
$15.73
999+
$15.29
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds |
- Brand / Quality:
- KSM - Good Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
Technical
Technical
| --- | Bearing Dimensions |
|---|---|
| d | 40mm |
| D | 80mm |
| B | 18mm |
| r1r2 min | 1.1mm |
| --- | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | 19300 N |
| Basic Static Load Raiting Cor | 6550 N |
| Limiting Speed in Grease | 7100 rpm |
| Limiting Speed in Oil | 8400 rpm |
| Weight | 0.414 kg |
| --- | Matching Adaptor Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H208+sleeve>H208</a> |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE208+sleeve>HE208</a> |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS208+sleeve>HS208</a> |
