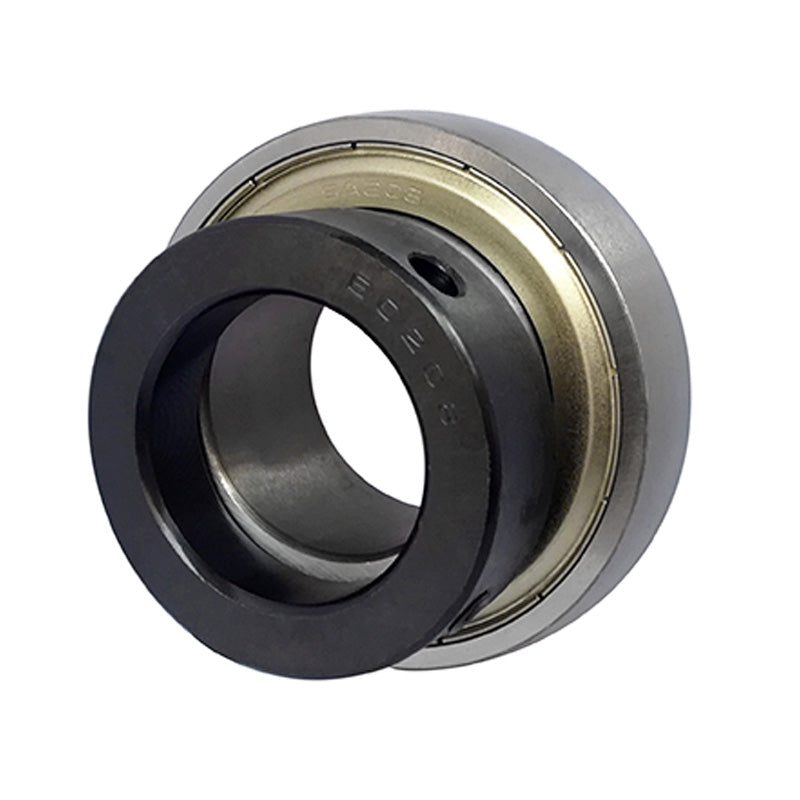

• RHP 1217-5/8ECG Spherical Outside Flat Back Collar Bearing Insert 5/8 inch Bore 40mm Outside Diameter
1 1

SKU: 1217-5/8ECG-RHP

RHP 1217-5/8ECG Spherical Outside Flat Back Collar Bearing Insert 5/8 inch Bore 40mm Outside Diameter

RHP 1217-5/8ECG Spherical Outside Flat Back Collar Bearing Insert 5/8 inch Bore 40mm Outside Diameter
$29.72 ex VAT
$29.72 ex VAT
Sale Sold out

In stock

Price Break
10+ $19.90
20+ $18.79
30+ $18.56
40+ $18.34
50+ $18.12
75+ $17.89
100+ $16.77
200+ $16.55
250+ $16.33
500+ $16.10
1000+ $15.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1200 ECG Series: Flat back bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, eccentric collar fixing, re-lubricatable
Brand / Quality:
RHP - High Quality
Inside Diameter:
15.88mm = 0.625 (5/8) inch
Outside Diameter:
40mm
Style:
1217
Technical
Bore 5/8 inch
D 1.5748 inch
C 0.472 inch
B2 1.124 inch
s1 0.258 inch
d2 1.125 inch
r 0.024 inch
Dynamic load Cr 9550 N
Static load Cor 4800 N
Rec max speed 7000 rpm
Weight 0.15 kg
