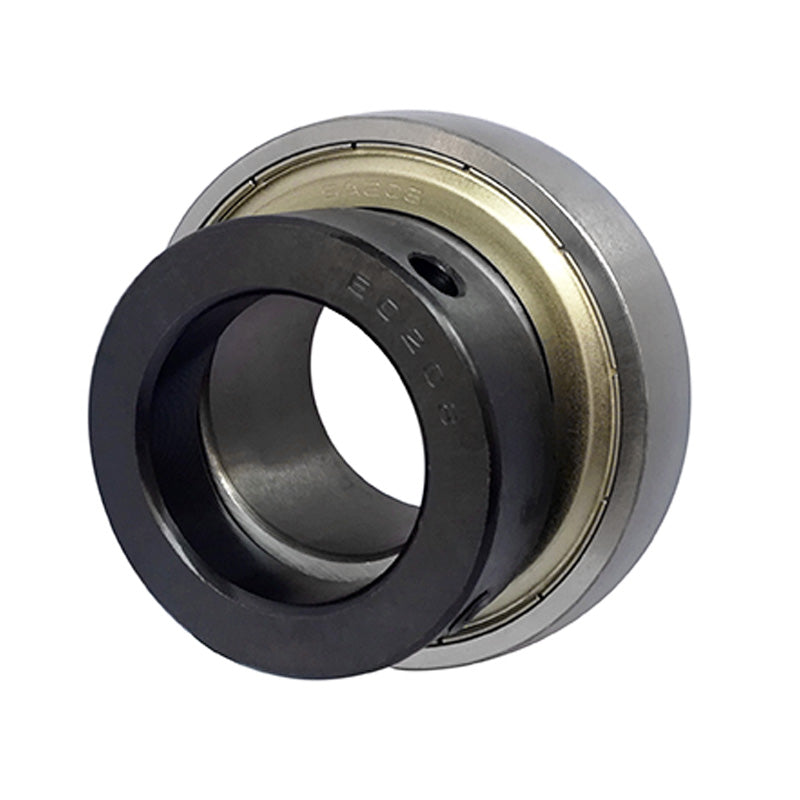

• RHP 1225-1EC Spherical Outside Flat Back Collar Bearing Insert 1 inch Bore 52mm Outside Diameter
1 1

SKU: 1225-1EC-RHP

RHP 1225-1EC Spherical Outside Flat Back Collar Bearing Insert 1 inch Bore 52mm Outside Diameter

RHP 1225-1EC Spherical Outside Flat Back Collar Bearing Insert 1 inch Bore 52mm Outside Diameter
$34.69 ex VAT
$34.69 ex VAT
Sale Sold out

In stock

Price Break
10+ $23.24
20+ $21.93
30+ $21.67
40+ $21.41
50+ $21.15
75+ $20.89
100+ $19.58
200+ $19.32
250+ $19.06
500+ $18.80
1000+ $18.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1200 EC Series: Flat back bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, eccentric collar fixing, sealed for life
Brand / Quality:
RHP - High Quality
Inside Diameter:
25.4mm = 1 inch
Outside Diameter:
52mm
Style:
1225
Technical
Bore 1 inch
D 2.0472 inch
C 0.591 inch
B2 1.217 inch
s1 0.298 inch
d2 1.5 inch
r 0.039 inch
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 0.23 kg
